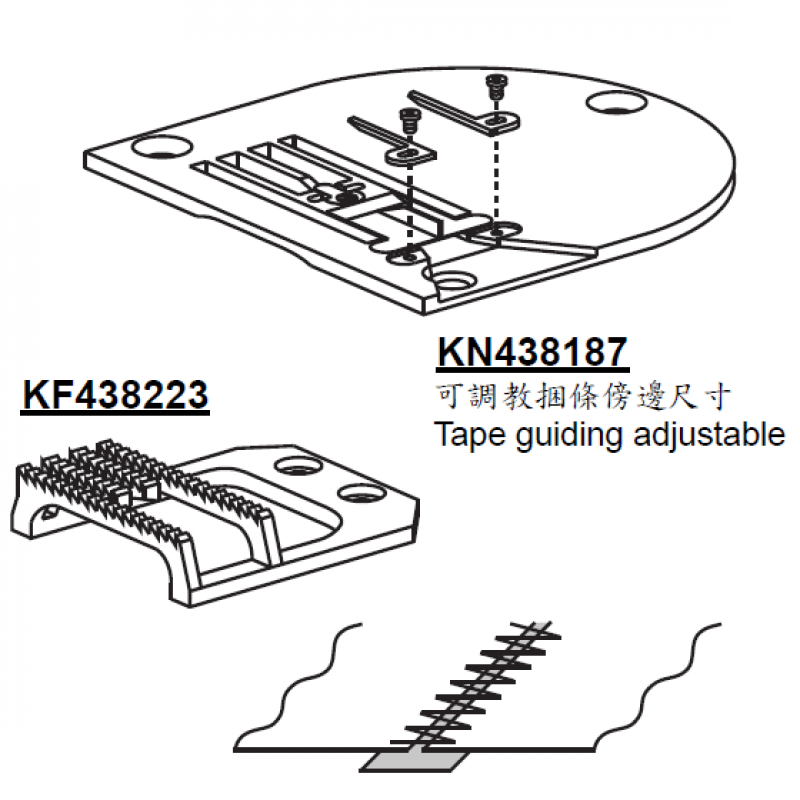

KN438187 Needle Plate + KF438223 Feed Dog — This is a set of butt seam and tape guiding needle plate and feed dog for Pfaff zigzag machine. There is a groove for tape input at the front of needle plate. The groove size is adjustable with a pair of guides. (max.7.5mm) One more guiding is on the top of the groove. It is a center guide helping the operator to do the butt seam. There is a removable supporter on the needle hole. (2.5mm wide) It is helpful for butt seam and thin material. Teeth: 4 rolls Teeth Width: 17mm total Needle Hole: 10mm Tape size: max 7.5mm wide and adjustable Supporter on needle hole: 2.5mm wide
Size / option
(3)
Price
- Request quote
Description
This is a set of butt seam and tape guiding needle plate and feed dog for Pfaff zigzag machine. There is a groove for tape input at the front of needle plate. The groove size is adjustable with a pair of guides. (max.7.5mm) One more guiding is on the top of the groove. It is a center guide helping the operator to do the butt seam. There is a removable supporter on the needle hole. (2.5mm wide) It is helpful for butt seam and thin material. Teeth: 4 rolls Teeth Width: 17mm total Needle Hole: 10mm Tape size: max 7.5mm wide and adjustable Supporter on needle hole: 2.5mm wide
Russian name
KN438187 Needle Plate + KF438223 Feed Dog
Specifications
| BRAND | KWOKHING |
|---|---|
| SAP_NUMBER | PFFKN438187N |
| DESCRIPTION | This is a set of butt seam and tape guiding needle plate and feed dog for Pfaff zigzag machine. There is a groove for tape input at the front of needle plate. The groove size is adjustable with a pair of guides. (max.7.5mm) One more guidi… |
| MORE_PHOTO | ["89690", "89691", "89692", "89693"] |
| DESCRIPTION_RU | Это комплект стыкового шва, направляющей игольная пластина и зубчатый нижний транспортер для зигзагообразной машина Pfaff. В передней части игольная пластина имеется паз для ввода ленты. Размер паза регулируется с помощью пары направляющи… |
