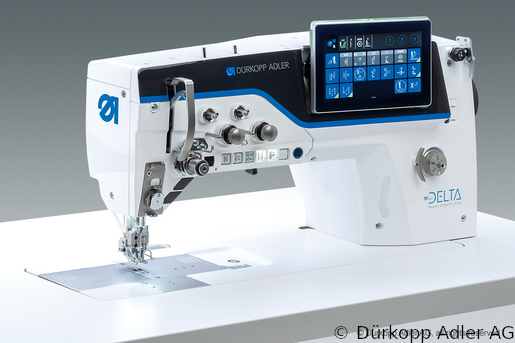

D867-290942 DELTA 2-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine. (4867 990010 005)
Price
- Цена отпускная19747.00 EUR
- AvailabilityAvailable to order
Description

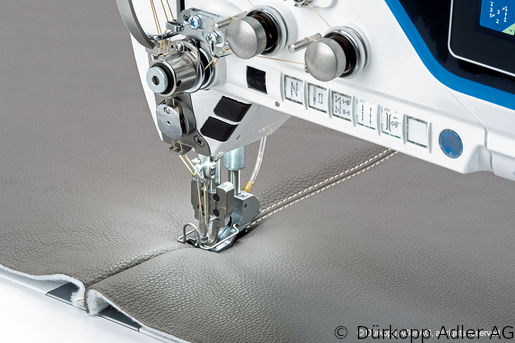

Dürkopp Adler 2-Needle lockstitch flatbed bottom feed, needle feed and
alternating foot top feed.
Features: 5 Laser-marking lamps separately programmable, lockstitch
sewing head with light barrier for flap-length control, electronic
Needle Positioning Electronic hand wheel, material thickness detection,
motor dirven foot lifting and bartacking automatic, programmable, motor
driven, control elements for stichlength, foot lifting an pressure,
Oil level indicator.
D867-290942 SEWING MACHINE [4867 990010]:
Twin needle lockstitch machine, with bottom feed, needle feed
and alternating feet, motor-driven sewing foot lift and
seam back tacking. Programmable motor-driven adjusting
elements for stitch length, foot stroke,sewing foot pressure and

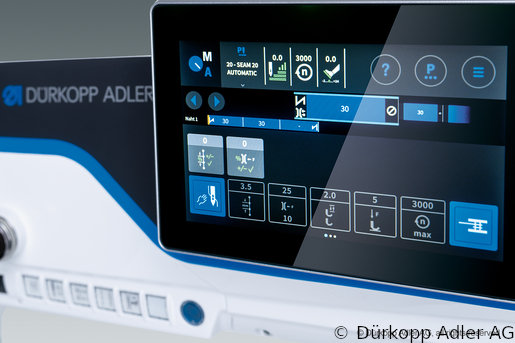

needle thread tension. With programmable jog dial for needle
positioning, material thickness detection, maintenance indicator,
integrated sewing light (LED) and under-arm light with dimmerand
integrated, intelligent motor driven bobbin winder. XXL- two piece hook
(32mm) Max. sewing speed 3500 stitches/min. Electromagnetic thread
trimmer sewing foot lift max. 20 mm
4867 E 21/6-6 sew. equipment [4867 E02106 6]:
Sewing equipment, needle distance 6 mm, needle size Nm 110-
140, max. stitch length 6 mm
Russian name
D867-290942 Двухигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990010 005)
Specifications
| ART | 4867 990010 005 |
|---|---|
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |
| DESCRIPTION_RU | Dürkopp Adler 2-игольный челночный стежок: планшетная подача снизу, игольная подача и попеременная верхняя подача лапки. Характеристики: 5 отдельно программируемых ламп лазерной маркировки, швейная головка челночного стежка со световым бар… |
| MATERIALS | ["4867 990010", "0791 867536", "0791 867752 EN", "4867 E02106 6"] |
| MORE_PHOTO | ["267602", "267603"] |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 2 |
| PODEM_SHVEYNOY_LAPKI_V_MM | 9 |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | С плоской платформой |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| VYSOTA_PODEMA_LAPKI | 20 |
| MATERIAL | Средние |
| TOLSHCHINA_IGLY_NM | ["120", "130", "140", "110", "135", "125", "115"] |
| MEZHIGOLNOE_RASSTOYANIE_MM | 6 |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 3500 |
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 6 |
| KLASS | D867 |
| SUBKLASS | 290942 |
