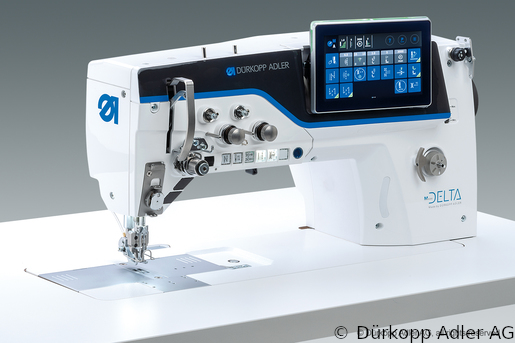

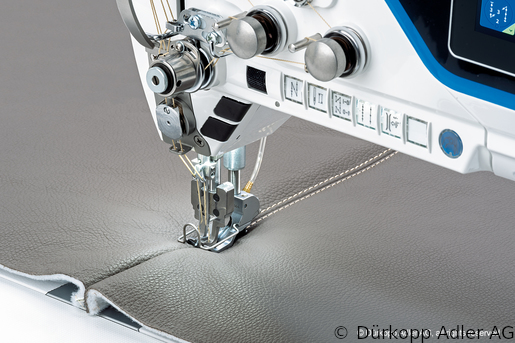

D867-290942 DELTA 2-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine. (4867 990010 003)
Price
- Цена отпускная22099.00 EUR
- AvailabilityAvailable to order
Description
Dürkopp Adler 2-Needle lockstitch flatbed bottom feed, needle feed and
alternating foot top feed.
Features: 5 Laser-marking lamps separately programmable, lockstitch
sewing head with light barrier for flap-length control, electronic
Needle Positioning Electronic hand wheel, material thickness detection,
motor dirven foot lifting and bartacking automatic, programmable, motor
driven, control elements for stichlength, foot lifting an pressure,
Oil level indicator.
D867-290942 SEWING MACHINE [4867 990010]:
Twin needle lockstitch machine, with bottom feed, needle feed
and alternating feet, motor-driven sewing foot lift and
seam back tacking. Programmable motor-driven adjusting
elements for stitch length, foot stroke,sewing foot pressure and
needle thread tension. With programmable jog dial for needle
positioning, material thickness detection, maintenance indicator,
integrated sewing light (LED) and under-arm light with dimmerand
integrated, intelligent motor driven bobbin winder. XXL- two piece hook
(32mm) Max. sewing speed 3500 stitches/min. Electromagnetic thread
trimmer sewing foot lift max. 20 mm
4867 E 22/8-9 sew. equipment [4867 E02209 8]:
Sewing equipment for topstitching of closing seams, needle
distance 8 mm, needle size Nm 140-180, max. stitch length 9 mm

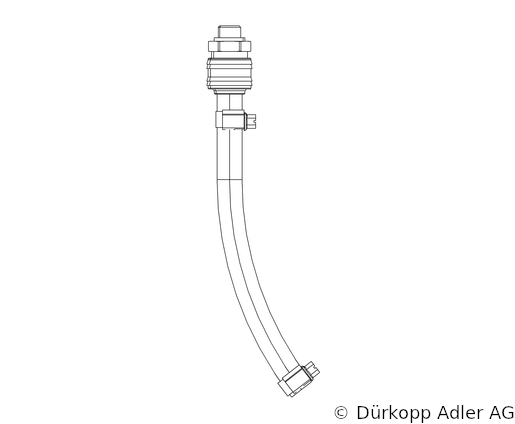

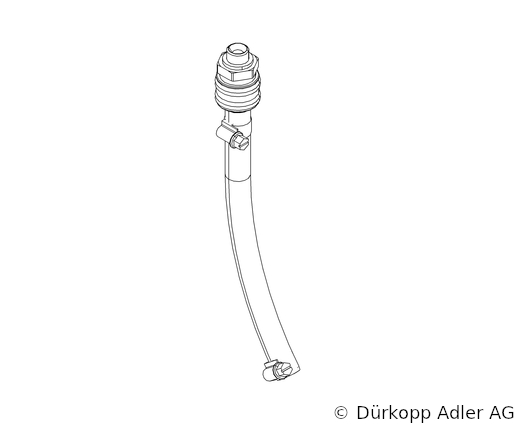

PNEUMATIC CONNECTIO [0797 003031]:
Pneumatic connection package
SLIDE MONITORING M-TYPE 3 FLATBED [0867 154124]:
Hook cover monitoring, right and left
Only in combination with adapter cable 9874 867025

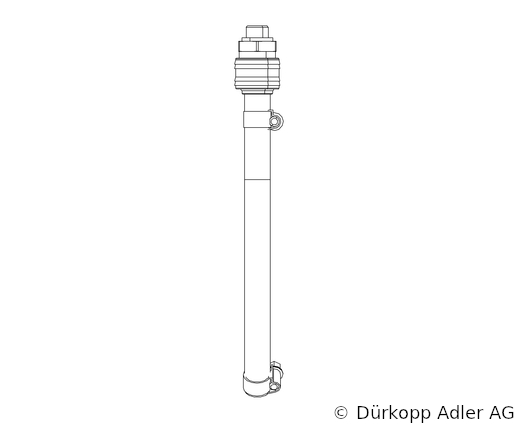

air pistol [0867 593504]:
Compressed-air pistol
thread monitor RFW 20-4 [0867 594044]:
Photoelectric thread monitor for the remaining bobbin thread

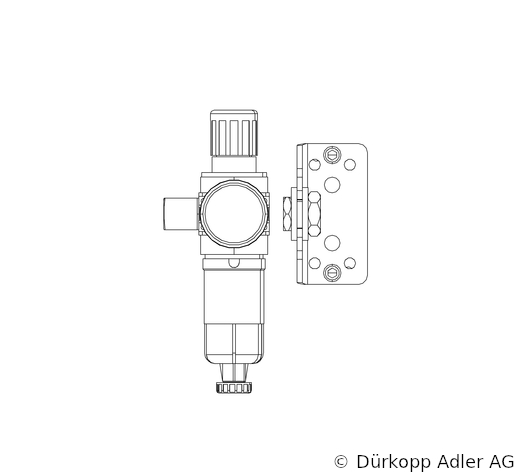

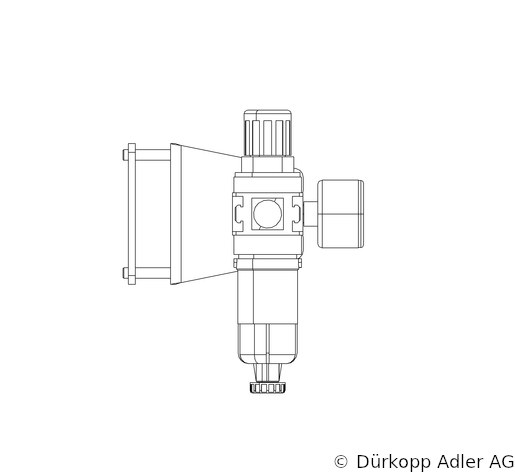

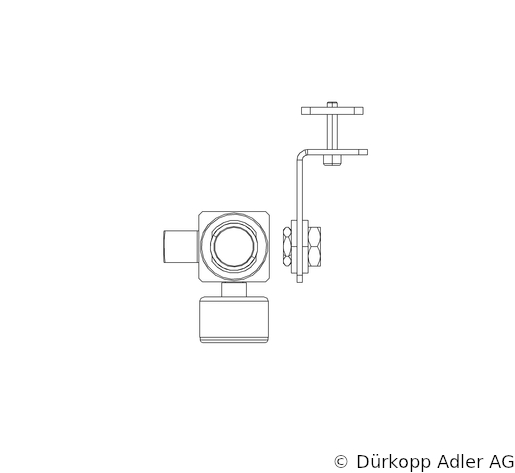

WE-8 MAINTENANCE UN [9780 000108]:
Maintenance unit
Russian name
D867-290942 Двухигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990010 003)
Specifications
| ART | 4867 990010 003 |
|---|---|
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |
| DESCRIPTION_RU | Dürkopp Adler 2-игольный челночный стежок: планшетная подача снизу, игольная подача и попеременная верхняя подача лапки. Характеристики: 5 отдельно программируемых ламп лазерной маркировки, швейная головка челночного стежка со световым бар… |
| MATERIALS | ["4867 990010", "0791 867536", "0791 867752 EN", "4867 E02209 8", "0797 003031", "0867 154124", "0867 593504", "0867 594044", "9780 000108"] |
| MORE_PHOTO | ["268392", "268393", "268394", "268395", "268396", "268397", "268398", "268399", "268400"] |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 2 |
| PODEM_SHVEYNOY_LAPKI_V_MM | 9 |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | С плоской платформой |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| VYSOTA_PODEMA_LAPKI | 20 |
| PRIMENENIE_PO_OPERATSIYAM | Для отделочной строчки |
| MATERIAL | Средние |
| TOLSHCHINA_IGLY_NM | ["140", "150", "160", "180", "170", "145"] |
| MEZHIGOLNOE_RASSTOYANIE_MM | 8 |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 3500 |
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 9 |
| KLASS | D867 |
| SUBKLASS | 290942 |
