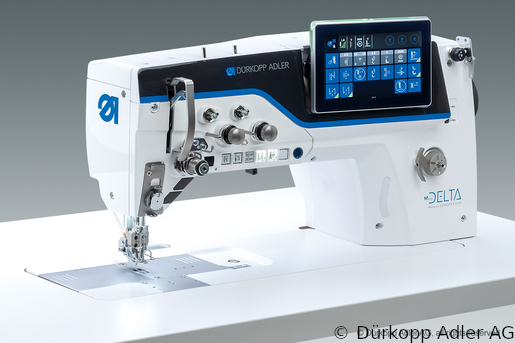

D867-290922 DELTA 2-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine. (4867 990009 014)
Price
- Цена отпускная20798.75 EUR
- AvailabilityAvailable to order
Description
Dürkopp Adler 2-Needle lockstitch flatbed bottom feed, needle feed and
alternating foot top feed.
Features: lockstitch sewing head with light barrier for flap-length
control, electronic Needle Positioning Electronic hand wheel,
material thickness detection, motor dirven foot lifting and bartacking
automatic, programmable, motor driven, control elements for stichlength,
foot lifting an pressure, safety clutch, Oil level indicator
XL- two piece hook (28mm)
Operation purpose: for topstitching of closing seams
Maximum Stitch Length (in mm): 9,00
Needle thickness (nm): 110, 115, 120, 125, 130, 135, 140
Needle distance (mm): 6,0, 14,0.
D867-290922 SEWING MACHINE [4867 990009]:
Twin needle lockstitch machine, with bottom feed, needle feed
and alternating feet, motor-driven sewing foot lift and
seam back tacking. Programmable motor-driven adjusting
elements for stitch length, foot stroke,sewing foot pressure and
needle thread tension. With programmable jog dial for needle
positioning, material thickness detection, maintenance indicator,
integrated sewing light (LED) and under-arm light with dimmer
and integrated, intelligent motor driven bobbin winder. XL- two
piece hook (28mm) Max. sewing speed 3500 stitches/min.
Electromagnetic thread trimmer, sewing foot lift max. 20 mm
4867 E 24/6-9 sew. equipment [4867 E02409 6]:
Sewing equipment for topstitching of closing seams, needle
distance 6 mm, needle size Nm 110-140, max. stitch length 9 mm
HOOK COVER MONITORING [0867 154124]:
Hook cover monitoring, right and left
Only in combination with adapter cable 9874 867025
PNEUMATIC SMALL PARTS PACKAGE [0867 594304]:
Mounting bracket
CONNECTION PACKAGE OPERATION LOCK [9874 867025]:
Needle area cover monitoring
Russian name
D867-290922 Двухигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990009 014)
Specifications
| ART | 4867 990009 014 |
|---|---|
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |
| DESCRIPTION_RU | Dürkopp Adler 2-игольный челночный стежок: планшетная подача снизу, игольная подача и попеременная верхняя подача лапки. Особенности: швейная головка челночного стежка со световым барьером для контроля длины клапана, электронное позиционир… |
| MATERIALS | ["4867 990009", "0791 867536", "0791 867752 EN", "4867 E02409 6", "0867 154124", "0867 594304", "9874 867025"] |
| MORE_PHOTO | 278895 |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 2 |
| TIP_CHELONOKA | XL- двойной челнок (28mm) |
| PODEM_SHVEYNOY_LAPKI_V_MM | 20 |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | С плоской платформой |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| PRIMENENIE_PO_OPERATSIYAM | Для отделочной строчки |
| MATERIAL | Средние |
| TOLSHCHINA_IGLY_NM | ["120", "130", "140", "110", "135", "125", "115"] |
| MEZHIGOLNOE_RASSTOYANIE_MM | ["6", "14"] |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 3500 |
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 9 |
| SHVEYNYY_MATERIAL | Средний материал |
| MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA | 20 |
| KLASS | D867 |
| SUBKLASS | 290922 |
