D867-290922 DELTA 2-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine. (4867 990009 008)
Price
- Цена отпускная20354.25 EUR
- AvailabilityAvailable to order
Description
Dürkopp Adler 2-Needle lockstitch flatbed bottom feed, needle feed and
alternating foot top feed.
Features: 5 Laser-marking lamps separately programmable, lockstitch
sewing head with light barrier for flap-length control, electronic
Needle Positioning Electronic hand wheel, material thickness detection,
motor dirven foot lifting and bartacking automatic, programmable, motor
driven, control elements for stichlength, foot lifting an pressure,
Oil level indicator XL- two piece hook (28mm).

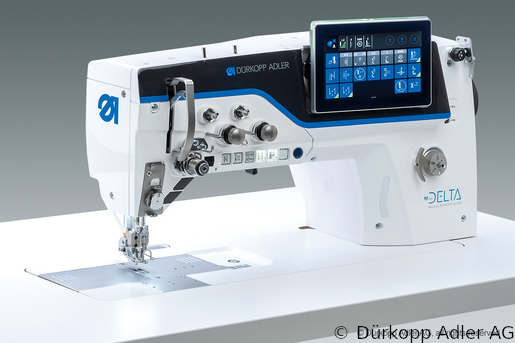

D867-290922 SEWING MACHINE [4867 990009]:
Twin needle lockstitch machine, with bottom feed, needle feed
and alternating feet, motor-driven sewing foot lift and
seam back tacking. Programmable motor-driven adjusting
elements for stitch length, foot stroke,sewing foot pressure and

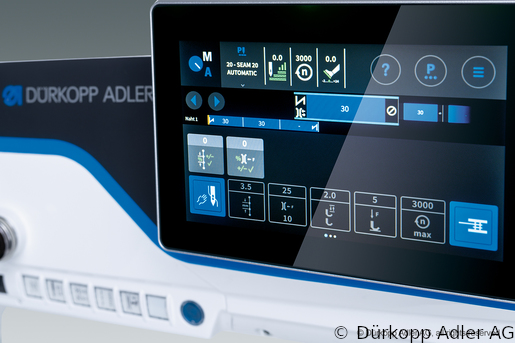

needle thread tension. With programmable jog dial for needle
positioning, material thickness detection, maintenance indicator,
integrated sewing light (LED) and under-arm light with dimmer
and integrated, intelligent motor driven bobbin winder. XL- two
piece hook (28mm) Max. sewing speed 3500 stitches/min.
Electromagnetic thread trimmer, sewing foot lift max. 20 mm
4867 E 24/6-9 sew. equipment [4867 E02409 6]:
Sewing equipment for topstitching of closing seams, needle
distance 6 mm, needle size Nm 110-140, max. stitch length 9 mm
Russian name
D867-290922 Двухигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990009 008)
Specifications
| ART | 4867 990009 008 |
|---|---|
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |
| DESCRIPTION_RU | Dürkopp Adler 2-игольный челночный стежок: планшетная подача снизу, игольная подача и попеременная верхняя подача лапки. Характеристики: 5 отдельно программируемых ламп лазерной маркировки, швейная головка челночного стежка со световым бар… |
| MATERIALS | ["4867 990009", "0791 867536", "0791 867752 EN", "4867 E02409 6"] |
| MORE_PHOTO | 272151 |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 2 |
| TIP_CHELONOKA | XL- двойной челнок (28mm) |
| PODEM_SHVEYNOY_LAPKI_V_MM | 20 |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | С плоской платформой |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| PRIMENENIE_PO_OPERATSIYAM | Для отделочной строчки |
| MATERIAL | Средние |
| TOLSHCHINA_IGLY_NM | ["120", "130", "140", "110", "135", "125", "115"] |
| MEZHIGOLNOE_RASSTOYANIE_MM | ["6", "14"] |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 3500 |
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 9 |
| SHVEYNYY_MATERIAL | Средний материал |
| MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA | 20 |
| KLASS | D867 |
| SUBKLASS | 290922 |
