spezi

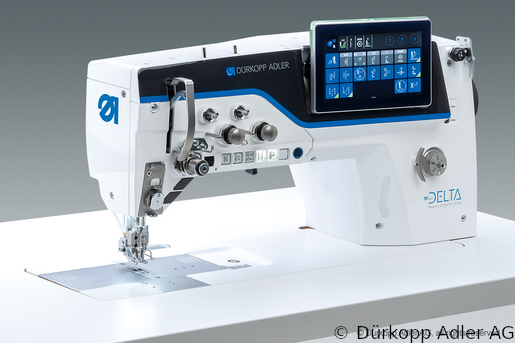

D867-290922 DELTA 2-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine. (4867 990009 004)

SKU: 4867 990009 004
Price
  • Цена отпускная22099.00 EUR
  • AvailabilityAvailable to order

Inquire More in section

Description

Dürkopp Adler 2-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed. Features: lockstitch sewing head with light barrier for flap-length control, electronic Needle Positioning Electronic hand wheel, material thickness detection, motor dirven foot lifting and bartacking automatic, programmable, motor driven, control elements for stichlength, foot lifting an pressure, safety clutch, Oil level indicator XL- two piece hook (28mm) Operation purpose: for topstitching of closing seams Maximum Stitch Length (in mm): 9,00 Needle thickness (nm): 140, 145, 150, 160, 170, 180 Needle distance (mm): 6,0. D867-290922 SEWING MACHINE [4867 990009]: Twin needle lockstitch machine, with bottom feed, needle feed and alternating feet, motor-driven sewing foot lift and seam back tacking. Programmable motor-driven adjusting elements for stitch length, foot stroke,sewing foot pressure and needle thread tension. With programmable jog dial for needle positioning, material thickness detection, maintenance indicator, integrated sewing light (LED) and under-arm light with dimmer and integrated, intelligent motor driven bobbin winder. XL- two piece hook (28mm) Max. sewing speed 3500 stitches/min. Electromagnetic thread trimmer, sewing foot lift max. 20 mm 4867 E 22/6-9 sew. equipment [4867 E02209 6]: Sewing equipment for topstitching of closing seams, needle distance 6 mm, needle size Nm 140-180, max. stitch length 9 mm PNEUMATIC CONNECTIO [0797 003031]: Pneumatic connection package SLIDE MONITORING M-TYPE 3 FLATBED [0867 154124]: Hook cover monitoring, right and left Only in combination with adapter cable 9874 867025 air pistol [0867 593504]: Compressed-air pistol thread monitor RFW 20-2 [0867 594024]: Photoelectric thread monitor for the remaining bobbin thread WE-8 MAINTENANCE UN [9780 000108]: Maintenance unit

Russian name

D867-290922 Двухигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990009 004)

Specifications

ART 4867 990009 004
PRODUKTSIYA ["Мягкая мебель", "Кожгалантерея"]
DESCRIPTION_RU Dürkopp Adler 2-игольный челночный стежок: планшетная подача снизу, игольная подача и попеременная верхняя подача лапки. Особенности: швейная головка челночного стежка со световым барьером для контроля длины клапана, электронное позиционир…
MATERIALS ["4867 990009", "0791 867536", "0791 867752 EN", "4867 E02209 6", "0797 003031", "0867 154124", "0867 593504", "0867 594024", "9780 000108"]
MORE_PHOTO ["264669", "264670", "264671", "264672", "264673", "264674", "264675", "264676"]
TYPE_STICH Челночный
KOLICHESTVO_IGL 2
TIP_CHELONOKA XL- двойной челнок (28mm)
PODEM_SHVEYNOY_LAPKI_V_MM 20
OSNOVNYE_TEKHNICHESKIE_KATEGORII С плоской платформой
PROIZVODITEL Dürkopp Adler
TIP_TRANSPORTA Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка
PRIMENENIE_PO_OPERATSIYAM Для отделочной строчки
MATERIAL Средние
TOLSHCHINA_IGLY_NM ["140", "150", "160", "180", "170", "145"]
MEZHIGOLNOE_RASSTOYANIE_MM 6
MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH 3500
MAKSIMALNAYA_DLINA_STEZHKA_V_MM 9
SHVEYNYY_MATERIAL Средний материал
MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA 20
KLASS D867
SUBKLASS 290922
