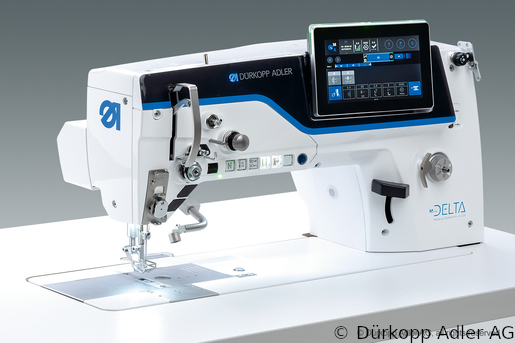

D867-190945 Dürkopp Adler DELTA 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine (4867 990005 CQBA)

SKU: 4867 990005 CQBA
Price
  • Цена отпускная25588.50 EUR
  • AvailabilityAvailable to order

Inquire More in section

Description

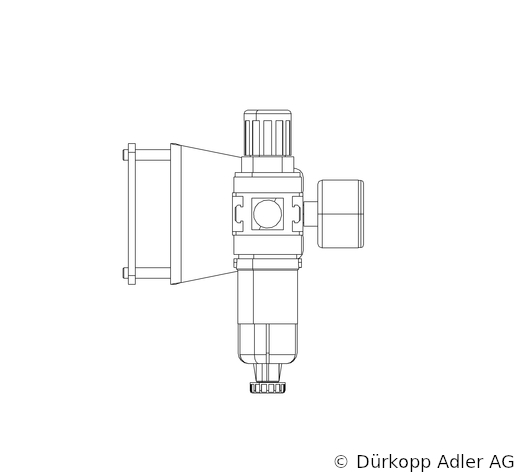

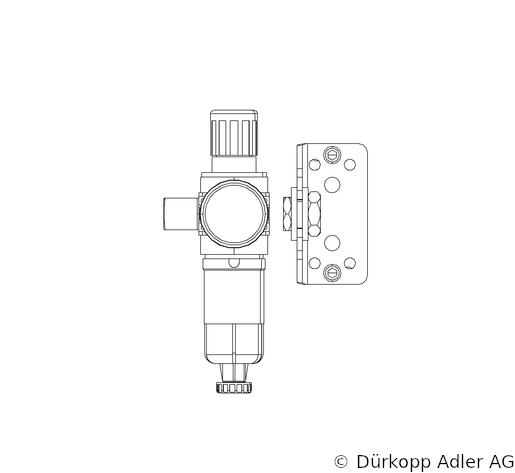

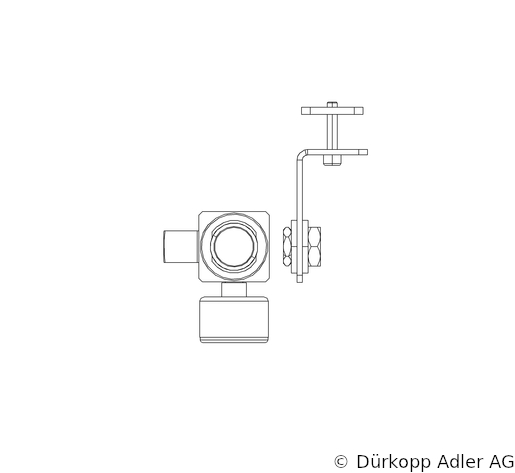

Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed. Features: electromagnetic short thread trimmer, electronic Needle Positioning Electronic hand wheel, material thickness detection, motor dirven foot lifting and bartacking automatic, programmable, motor driven, control elements for stichlength, foot lifting an pressure, safety clutch, Oil level indicator Maximum Stitch Length (in mm): 9,00 Needle thickness (nm): 110, 115, 120, 125, 130, 135, 140. D867-190945 SEWING MACHINE [4867 990005]: Single needle lockstitch machine, with bottom feed, needle feed and alternating feet, motor-driven sewing foot lift and seam back tacking. Programmable motor-driven adjusting elements for stitch length, foot stroke,sewing foot pressure and needle thread tension. With programmable jog dial for needle positioning, material thickness detection, maintenance indicator, integrated sewing light (LED) and under-arm light with dimmer and integrated, intelligent motor driven bobbin winder 4867 E 212/0-9 sew. equipment [4867 E21209]: Special sewing equipment “NSB”, needle size Nm 110-140, max. stitch length 9 mm Pneumatic connection package [0797 003031]: Pneumatic connection package HOOK COVER MONITORING [0867 154124]: Hook cover monitoring, right and left Only in combination with adapter cable 9874 867025 PNEUMATIC SMALL PARTS PACKAGE [0867 594304]: Mounting bracket SKIP STITCH DETECTION (SSD+RFW) [0867 594414]: Skip Stitch Detection (SSD) Attachement kit "tilt assitance" 120N [0867 594604]: Attachment kit „tilt assistance“ MAINTENANCE UNIT [9780 000108]: Maintenance unit CONNECTION PACKAGE OPERATION LOCK [9874 867025]: Needle area cover monitoring Standinstallation [4867 990005 ZM]: Assembly cost KIT [9880 867051]: Parts set “230V connector”, includes extension cable 9870 001046 pedal ERGO BODY [MG53 002531]: Pedal „ERGO BODY“ (for standing-up operation) STAND, ELECTRIC HEIGHT ADJUSTABLE [MG58 000602]: Stand, electric height adjustable TABLE TOP 1200X600 [0700 486706]: Table top 1200x600 mm

Russian name

D867-190945 Одноигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990005 CQBA)

Specifications

ART 4867 990005 CQBA
PRODUKTSIYA ["Мягкая мебель", "Кожгалантерея"]
DESCRIPTION_RU Dürkopp Adler 1-игольная челночная строчка: планшетная нижняя подача, игольная подача и попеременная верхняя подача лапки. Особенности: электромагнитный триммер короткой нити, электронное позиционирование иглы. Электронный маховик, определ…
MATERIALS ["4867 990005", "0791 867535", "0791 867752 DE", "0791 867752 EN", "4867 E21209", "0797 003031", "0867 154124", "0867 594304", "0867 154654", "0867 593514", "0867 594414", "0867 593534", "0867 594604", "9780 000108", "9870 001303", "9874 8…
MORE_PHOTO ["275751", "275752", "275753", "275754", "275755", "275756", "275757", "275758", "275759", "275760"]
TYPE_STICH Челночный
KOLICHESTVO_IGL 1
PODEM_SHVEYNOY_LAPKI_V_MM 9
OSNOVNYE_TEKHNICHESKIE_KATEGORII С плоской платформой
PROIZVODITEL Dürkopp Adler
TIP_TRANSPORTA Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка
MATERIAL Средние
TOLSHCHINA_IGLY_NM ["120", "130", "140", "110", "135", "125", "115"]
MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH 3500
MAKSIMALNAYA_DLINA_STEZHKA_V_MM 9
SHVEYNYY_MATERIAL Средний материал
MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA 20
KLASS D867
SUBKLASS 190945
