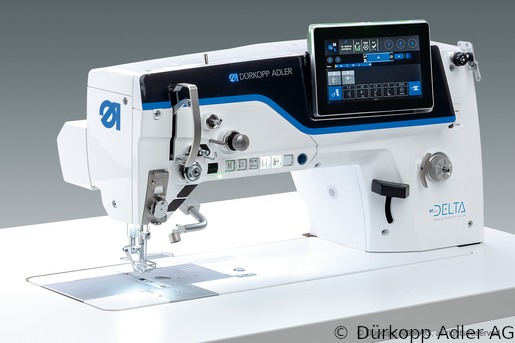

D867-190945 Dürkopp Adler DELTA 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine (4867 990005 CAPA)
Price
- Цена отпускная23996.00 EUR
- AvailabilityAvailable to order
Description
Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and
alternating foot top feed.
Features: 5 Laser-marking lamps separately programmable, electromagnetic
short thread trimmer, electronic Needle Positioning Electronic hand
wheel, material thickness detection, motor dirven foot lifting and
bartacking automatic, programmable, motor driven, control elements for
stichlength, foot lifting an pressure, Oil level indicator.
D867-190945 SEWING MACHINE [4867 990005]:
Single needle lockstitch machine, with bottom feed, needle feed and
alternating feet, motor-driven sewing foot lift and
seam back tacking. Programmable motor-driven adjusting elements for
stitch length, foot stroke,sewing foot pressure and needle thread
tension. With programmable jog dial for needle positioning, material
thickness detection, maintenance indicator, integrated sewing light
(LED) and under-arm light with dimmer and integrated, intelligent motor
driven bobbin winder
4867 E 212/0-9 sew. equipment [4867 E21209]:
Special sewing equipment “NSB”, needle size Nm 110-140, max. stitch
length 9 mm

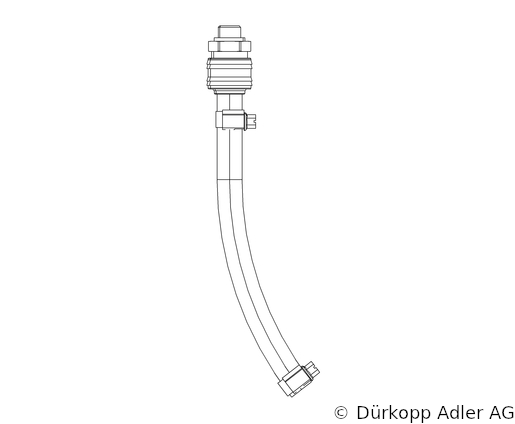

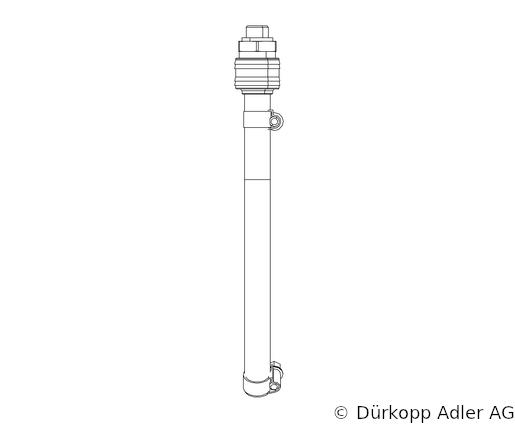

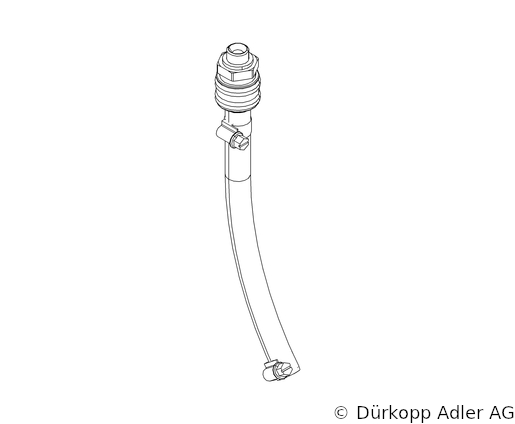

PNEUMATIC CONNECTIO [0797 003031]:
Pneumatic connection package

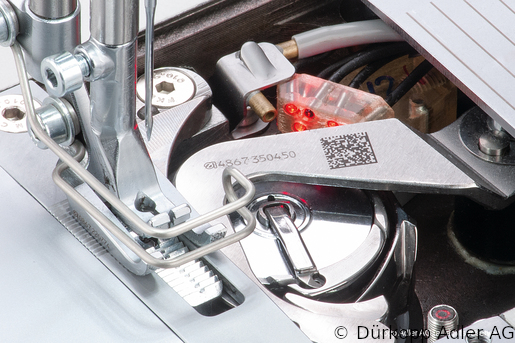

SLIDE MONITORING M-TYPE 3 FLATBED [0867 154124]:
Hook cover monitoring, right and left
Only in combination with adapter cable 9874 867025
PNEUMATIC CONNECTIO PREMIUM [0867 593534]:
Parts set for connecting optional pneumatic equipments

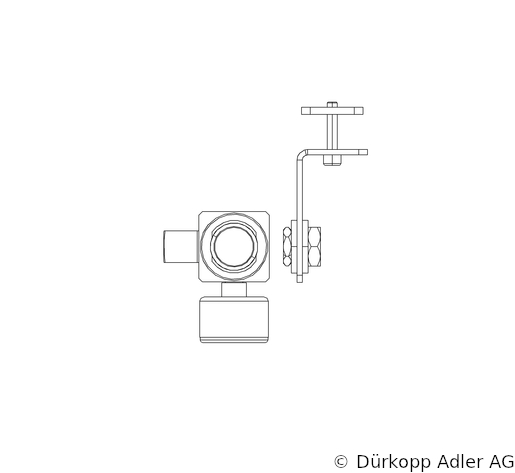

Pneumatic small parts package [0867 594304]:
Mounting bracket
Supplementar kit NSB [0867 594324]:
Function unit „NSB“ (Neat Seam Beginning)

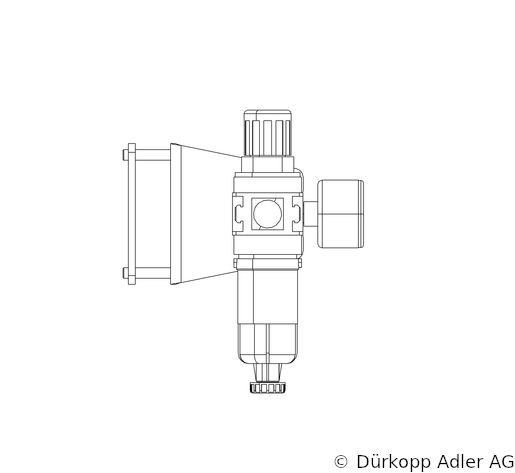

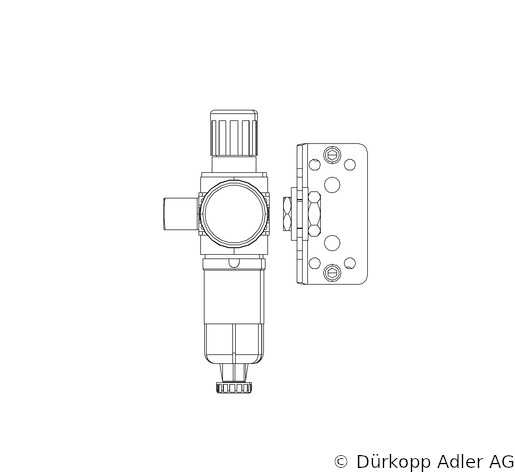

WE-8 MAINTENANCE UN [9780 000108]:
Maintenance unit
Adapter monitoring / cover [9874 867025]:
Needle area cover monitoring
BAUGRUPPE NFC [9874 867022]:
NFC (Near Field Communication)
KIT-SSD + RFW M-TYPE 3.0 [0867 594414]:
Skip Stitch Detection (SSD)
Standinstallation [4867 990005 ZM]:
Assembly cost
stand set w.table 1060X600 F.DAC [MG55 400914]:
Stand set, table top 1060x600 mm

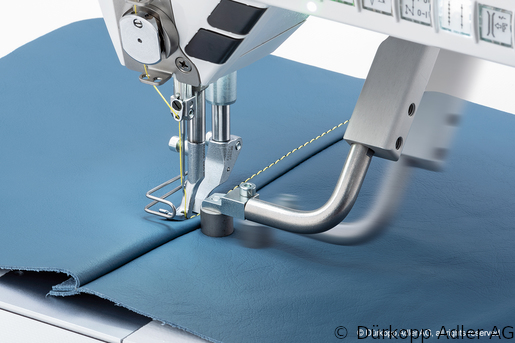

Motor-driven horizontal edge guide [4867 590014]:
Motor-driven edge guide (X-axis) with external stepper motor card
Russian name
D867-190945 Одноигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990005 CAPA)
Specifications
| ART | 4867 990005 CAPA |
|---|---|
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |
| MATERIALS | ["4867 990005", "0791 867535", "0791 867752 DE", "0791 867752 EN", "4867 E21209", "0797 003031", "0867 154124", "0867 594304", "0867 154654", "0867 593534", "0867 594324", "0867 594414", "9780 000108", "9874 867022", "9874 867025", "4867 9… |
| MORE_PHOTO | ["264637", "264638", "264639", "264640", "264641", "264642", "264643", "264644", "264645", "264646", "264647", "264648"] |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 1 |
| PODEM_SHVEYNOY_LAPKI_V_MM | 9 |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | С плоской платформой |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| MATERIAL | Средние |
| TOLSHCHINA_IGLY_NM | ["120", "130", "140", "110", "135", "125", "115"] |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 3500 |
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 9 |
| SHVEYNYY_MATERIAL | Средний материал |
| MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA | 20 |
| KLASS | D867 |
| SUBKLASS | 190945 |
| DESCRIPTION_RU | Dürkopp Adler 1-игольная челночная строчка: планшетная нижняя подача, игольная подача и попеременная верхняя подача лапки. Особенности: 5 отдельно программируемых ламп лазерной маркировки, электромагнитный триммер короткой нити, электронно… |
