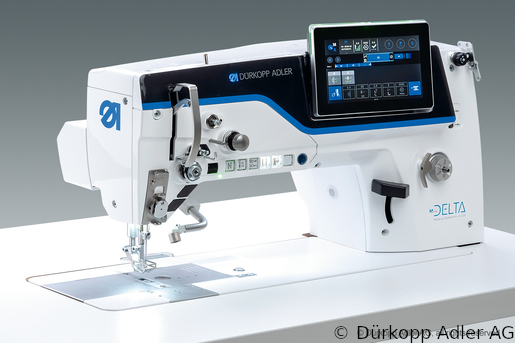

D867-190945 Dürkopp Adler DELTA 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine (4867 990005 056)
Price
- Цена отпускная18023.25 EUR
- AvailabilityAvailable to order
Description

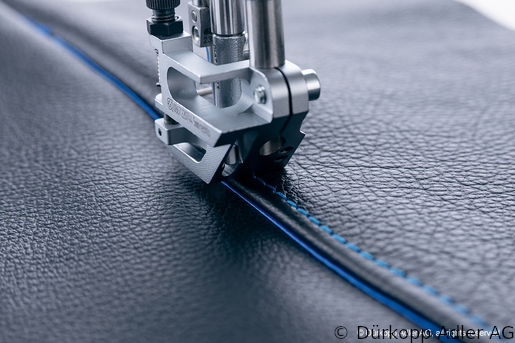

Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and
alternating foot top feed.
Features: electromagnetic short thread trimmer, electronic Needle
Positioning Electronic hand wheel, material thickness detection, motor
dirven foot lifting and bartacking automatic, programmable, motor
driven, control elements for stichlength, foot lifting an pressure,
safety clutch, Oil level indicator
Maximum Stitch Length (in mm): 7,00
Needle thickness (nm): 110, 115, 120, 125, 130, 135, 140.
D867-190945 SEWING MACHINE [4867 990005]:
Single needle lockstitch machine, with bottom feed, needle feed and
alternating feet, motor-driven sewing foot lift and
seam back tacking. Programmable motor-driven adjusting elements for
stitch length, foot stroke,sewing foot pressure and needle thread

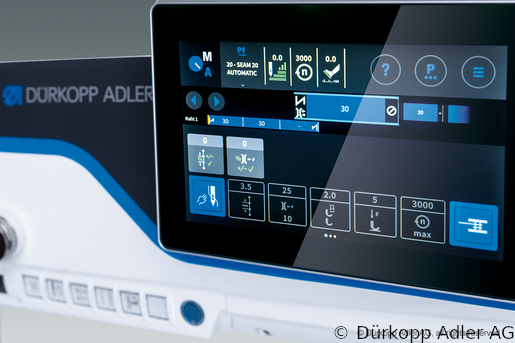

tension. With programmable jog dial for needle positioning, material
thickness detection, maintenance indicator, integrated sewing light
(LED) and under-arm light with dimmer and integrated, intelligent motor
driven bobbin winder
4867 E 101-7 sew. equipment [4867 E10107]:
Sewing equipment, needle size Nm 110-140, max. stitch length 7 mm
PNEUMATIC SMALL PARTS PACKAGE [0867 594304]:
Mounting bracket
NEEDLE COOLER, TOP (NK 20-1) [0867 594464]:
Needle cooler, top
Russian name
D867-190945 Одноигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990005 056)
Specifications
| ART | 4867 990005 056 |
|---|---|
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |
| DESCRIPTION_RU | Dürkopp Adler 1-игольная челночная строчка: планшетная нижняя подача, игольная подача и попеременная верхняя подача лапки. Особенности: электромагнитный триммер короткой нити, электронное позиционирование иглы. Электронный маховик, определ… |
| MATERIALS | ["4867 990005", "0791 867535", "0791 867752 FR", "4867 E10107", "0867 154654", "0867 594304", "0867 594464"] |
| MORE_PHOTO | ["282615", "282616"] |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 1 |
| PODEM_SHVEYNOY_LAPKI_V_MM | 9 |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | С плоской платформой |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| TOLSHCHINA_IGLY_NM | ["120", "130", "140", "110", "135", "125", "115"] |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 3500 |
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 7 |
| SHVEYNYY_MATERIAL | Средний материал |
| MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA | 20 |
| KLASS | D867 |
| SUBKLASS | 190945 |
