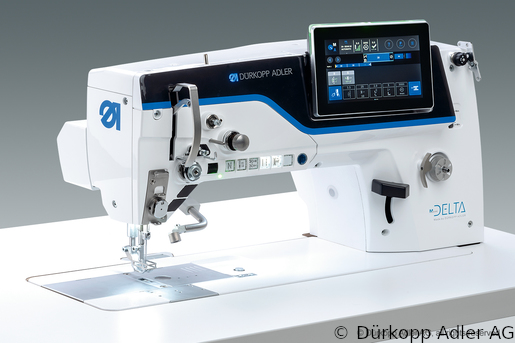

D867-190945 Dürkopp Adler DELTA 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine (4867 990005 030)
Price
- Цена отпускная18922.75 EUR
- AvailabilityAvailable to order
Description
Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and
alternating foot top feed.
Features: electromagnetic short thread trimmer, electronic Needle
Positioning Electronic hand wheel, material thickness detection, motor
dirven foot lifting and bartacking automatic, programmable, motor
driven, control elements for stichlength, foot lifting an pressure,
safety clutch, Oil level indicator
Maximum Stitch Length (in mm): 7,00
Needle thickness (nm): 110, 115, 120, 125, 130, 135, 140.
D867-190945 SEWING MACHINE [4867 990005]:
Single needle lockstitch machine, with bottom feed, needle feed and
alternating feet, motor-driven sewing foot lift and
seam back tacking. Programmable motor-driven adjusting elements for
stitch length, foot stroke,sewing foot pressure and needle thread

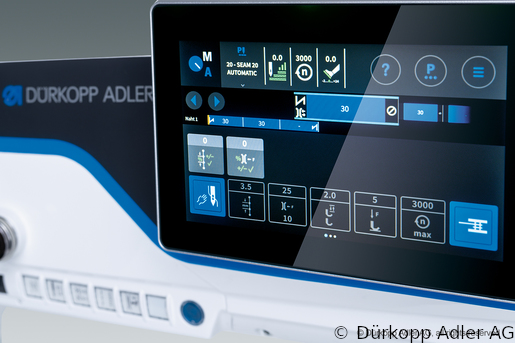

tension. With programmable jog dial for needle positioning, material
thickness detection, maintenance indicator, integrated sewing light
(LED) and under-arm light with dimmer and integrated, intelligent motor
driven bobbin winder
HOOK COVER MONITORING [0867 154124]:
Hook cover monitoring, right and left
Only in combination with adapter cable 9874 867025
PNEUMATIC SMALL PARTS PACKAGE [0867 594304]:
Mounting bracket
FUNKCTION UNIT "NSB" NEAT SEAM BEGINNIN [0867 594324]:
Function unit „NSB“ (Neat Seam Beginning)
CONNECTION PACKAGE OPERATION LOCK [9874 867025]:
Needle area cover monitoring
Russian name
D867-190945 Одноигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990005 030)
Specifications
| ART | 4867 990005 030 |
|---|---|
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |
| DESCRIPTION_RU | Dürkopp Adler 1-игольная челночная строчка: планшетная нижняя подача, игольная подача и попеременная верхняя подача лапки. Особенности: электромагнитный триммер короткой нити, электронное позиционирование иглы. Электронный маховик, определ… |
| MATERIALS | ["4867 990005", "0791 867535", "0791 867752 EN", "0867 154124", "0867 154654", "0867 594304", "0867 594324", "9874 867025", "4867 E21207"] |
| MORE_PHOTO | ["272130", "272131", "272132"] |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 1 |
| PODEM_SHVEYNOY_LAPKI_V_MM | 9 |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | С плоской платформой |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| MATERIAL | Средние |
| TOLSHCHINA_IGLY_NM | ["120", "130", "140", "110", "135", "125", "115"] |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 3500 |
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 7 |
| SHVEYNYY_MATERIAL | Средний материал |
| MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA | 20 |
| KLASS | D867 |
| SUBKLASS | 190945 |
