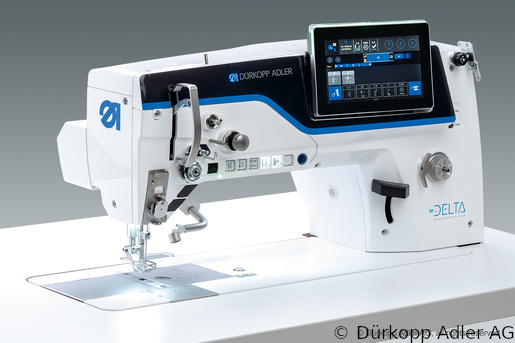

D867-190945 Dürkopp Adler DELTA 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine (4867 990005 021)

SKU: 4867 990005 021
Price
  • Цена отпускная23903.25 EUR
  • AvailabilityAvailable to order

Inquire More in section

Description

Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed. Features: electromagnetic short thread trimmer, electronic Needle Positioning Electronic hand wheel, material thickness detection, motor dirven foot lifting and bartacking automatic, programmable, motor driven, control elements for stichlength, foot lifting an pressure, safety clutch, Oil level indicator Maximum Stitch Length (in mm): 9,00 Needle thickness (nm): 110, 115, 120, 125, 130, 135, 140. D867-190945 SEWING MACHINE [4867 990005]: Single needle lockstitch machine, with bottom feed, needle feed and alternating feet, motor-driven sewing foot lift and seam back tacking. Programmable motor-driven adjusting elements for stitch length, foot stroke,sewing foot pressure and needle thread tension. With programmable jog dial for needle positioning, material thickness detection, maintenance indicator, integrated sewing light (LED) and under-arm light with dimmer and integrated, intelligent motor driven bobbin winder 4867 E 212/0-9 sew. equipment [4867 E21209]: Special sewing equipment “NSB”, needle size Nm 110-140, max. stitch length 9 mm PNEUMATIC CONNECTIO [0797 003031]: Pneumatic connection package thread monitor RFW 20-3 [0867 594034]: Photoelectric thread monitor for the remaining bobbin thread Supplementar kit NSB [0867 594324]: Function unit „NSB“ (Neat Seam Beginning) BAUGRUPPE NFC [9874 867022]: NFC (Near Field Communication) KIT-SSD + RFW M-TYPE 3.0 [0867 594414]: Skip Stitch Detection (SSD) Motor-driven horizontal edge guide [4867 590024]: Motor-driven edge guide (X- and Z-axis) with external stepper motor card

Russian name

D867-190945 Одноигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990005 021)

Specifications

ART 4867 990005 021
PRODUKTSIYA ["Мягкая мебель", "Кожгалантерея"]
MATERIALS ["4867 990005", "0791 867535", "0791 867752 EN", "4867 E21209", "0797 003031", "0867 594034", "0867 594324", "0867 594414", "9874 867022", "4867 590024"]
MORE_PHOTO ["291038", "291039", "291040", "291041", "291042", "291043", "291044", "291045", "291046"]
TYPE_STICH Челночный
KOLICHESTVO_IGL 1
PODEM_SHVEYNOY_LAPKI_V_MM 9
OSNOVNYE_TEKHNICHESKIE_KATEGORII С плоской платформой
PROIZVODITEL Dürkopp Adler
TIP_TRANSPORTA Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка
MATERIAL Средние
TOLSHCHINA_IGLY_NM ["120", "130", "140", "110", "135", "125", "115"]
MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH 3500
MAKSIMALNAYA_DLINA_STEZHKA_V_MM 9
SHVEYNYY_MATERIAL Средний материал
MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA 20
KLASS D867
SUBKLASS 190945
DESCRIPTION_RU Dürkopp Adler 1-игольная челночная строчка: планшетная нижняя подача, игольная подача и попеременная верхняя подача лапки. Особенности: электромагнитный триммер короткой нити, электронное позиционирование иглы. Электронный маховик, определ…
