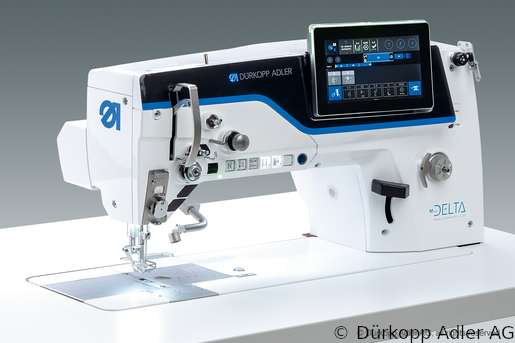

D867-190942 Dürkopp Adler DELTA 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine (4867 990004 UQP)

SKU: 4867 990004 UQP
Price
  • Цена отпускная24689.00 EUR
  • AvailabilityAvailable to order

Inquire More in section

Description

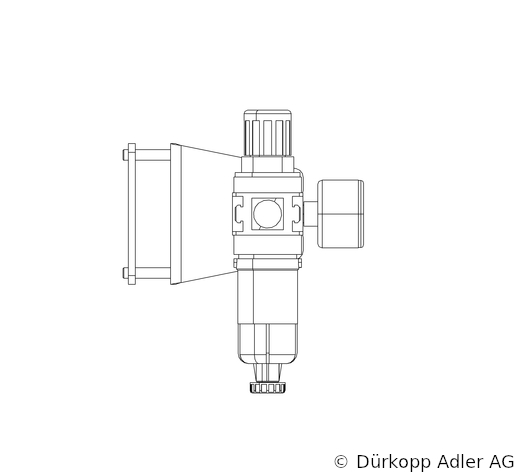

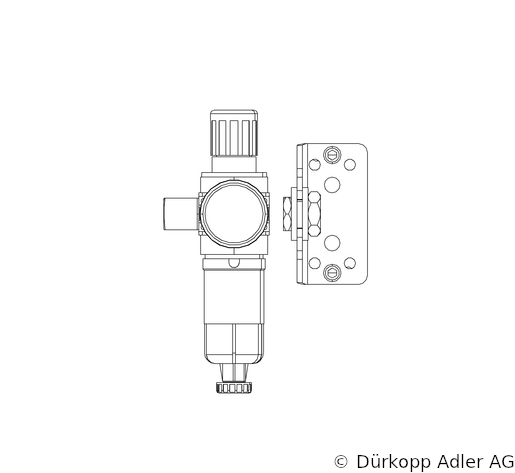

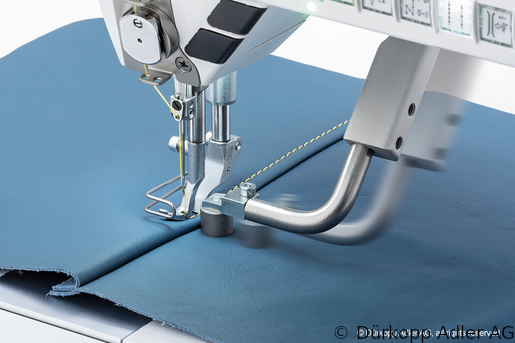

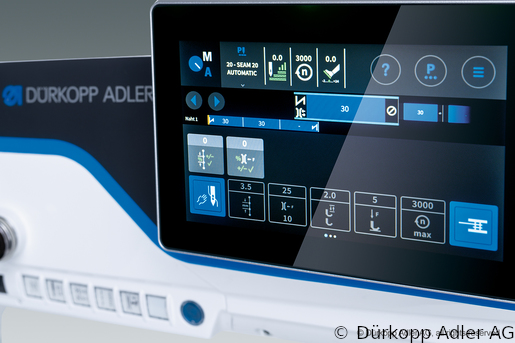

Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed. Features: lockstitch sewing head with light barrier for flap-length control, electronic Needle Positioning Electronic hand wheel, material thickness detection, motor dirven foot lifting and bartacking automatic, programmable, motor driven, control elements for stichlength, foot lifting an pressure, safety clutch, Oil level indicator XXL- two piece hook (32mm) Maximum Stitch Length (in mm): 9,00 Needle thickness (nm): 110, 115, 120, 125, 130, 135, 140. D867-190942 SEWING MACHINE [4867 990004]: Single needle lockstitch machine, with bottom feed, needle feed and alternating feet, motor-driven sewing foot lift and seam back tacking. Programmable motor-driven adjusting elements for stitch length, foot stroke,sewing foot pressure and needle thread tension. With programmable jog dial for needle positioning, material thickness detection, maintenance indicator, integrated sewing light (LED) and under-arm light with dimmer and integrated, intelligent motor driven bobbin winder 4867 E 2 sew. equipment [4867 E00209]: Sewing equipment, needle size Nm 110-140, max. stitch length 9mm Pneumatic connection package [0797 003031]: Pneumatic connection package BOBBIN THREAD MOINITOR, 1N., XXL-HOOK [0867 594034]: Photoelectric thread monitor for the remaining bobbin thread PNEUMATIC SMALL PARTS PACKAGE [0867 594304]: Mounting bracket THREAD NIPPER [0867 594334]: Thread nipper ELECTRONIC BACK TACK LEVER [0867 594404]: Electronic back tack lever Attachement kit "tilt assitance" 120N [0867 594604]: Attachment kit „tilt assistance“ MAINTENANCE UNIT [9780 000108]: Maintenance unit Near field communication (NFC) [9874 867022]: NFC (Near Field Communication) KIT [9880 867051]: Parts set “230V connector”, includes extension cable 9870 001046 STAND, ELECTRIC HEIGHT ADJUSTABLE [MG58 000602]: Stand, electric height adjustable TABLE TOP 1200X600 [0700 486706]: Table top 1200x600 mm MOTOR-DRIVEN EDGE GUIDE, X-,Y-AXIS [4867 590024]: Motor-driven edge guide (X- and Z-axis) with external stepper motor card

Russian name

D867-190942 Одноигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990004 UQP)

Specifications

ART 4867 990004 UQP
PRODUKTSIYA ["Мягкая мебель", "Кожгалантерея"]
DESCRIPTION_RU Dürkopp Adler 1-игольная челночная строчка: планшетная нижняя подача, игольная подача и попеременная верхняя подача лапки. Характеристики: швейная головка челночного стежка со световым барьером для контроля длины клапана, электронное позиц…
MATERIALS ["4867 990004", "0791 867535", "0791 867752 EN", "4867 E00209", "0797 003031", "0867 593514", "0867 594034", "0867 593534", "0867 594304", "0867 594334", "0867 594404", "0867 594604", "9780 000108", "9870 001303", "9880 867051", "9874 8670…
MORE_PHOTO ["291006", "291007", "291008", "291009", "291010", "291011", "291012", "291013", "291014", "291015"]
TYPE_STICH Челночный
KOLICHESTVO_IGL 1
TIP_CHELONOKA XXL- двойной челнок (32mm)
PODEM_SHVEYNOY_LAPKI_V_MM 20
OSNOVNYE_TEKHNICHESKIE_KATEGORII С плоской платформой
PROIZVODITEL Dürkopp Adler
TIP_TRANSPORTA Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка
MATERIAL Средние
TOLSHCHINA_IGLY_NM ["120", "130", "140", "110", "135", "125", "115"]
MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH 3500
MAKSIMALNAYA_DLINA_STEZHKA_V_MM 9
SHVEYNYY_MATERIAL Средний материал
MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA 20
KLASS D867
SUBKLASS 190942
