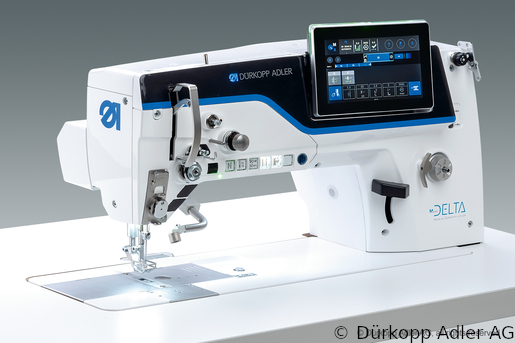

D867-190942 Dürkopp Adler DELTA 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine (4867 990004 043)
Price
- Цена отпускная23128.00 EUR
- AvailabilityAvailable to order
Description

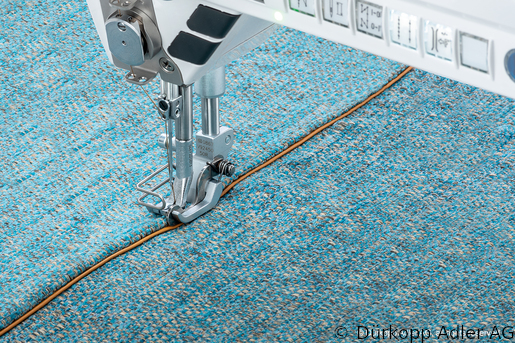

Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and
alternating foot top feed.
Features: lockstitch sewing head with light barrier for flap-length
control, electronic Needle Positioning Electronic hand wheel,
material thickness detection, motor dirven foot lifting and bartacking
automatic, programmable, motor driven, control elements for stichlength,
foot lifting an pressure, safety clutch, Oil level indicator
XXL- two piece hook (32mm)
Maximum Stitch Length (in mm): 9,00
Needle thickness (nm): 110, 115, 120, 125, 130, 135, 140.
D867-190942 SEWING MACHINE [4867 990004]:
Single needle lockstitch machine, with bottom feed, needle feed and
alternating feet, motor-driven sewing foot lift and
seam back tacking. Programmable motor-driven adjusting elements for
stitch length, foot stroke,sewing foot pressure and needle thread

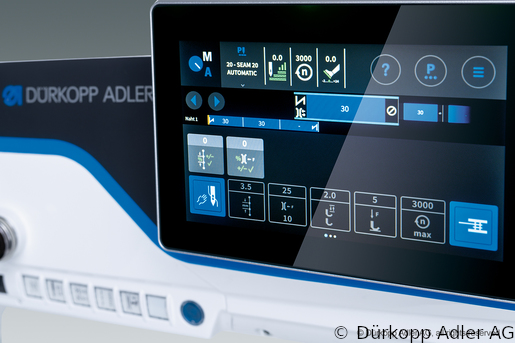

tension. With programmable jog dial for needle positioning, material
thickness detection, maintenance indicator, integrated sewing light
(LED) and under-arm light with dimmer and integrated, intelligent motor
driven bobbin winder
4867 E 2 sew. equipment [4867 E00209]:
Sewing equipment, needle size Nm 110-140, max. stitch length 9mm

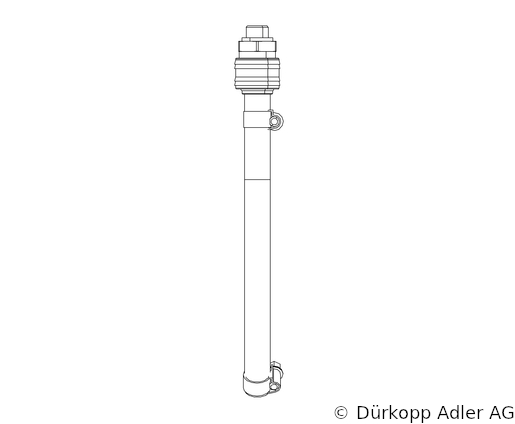

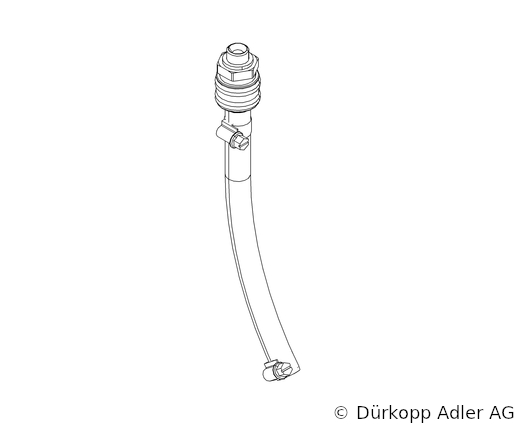

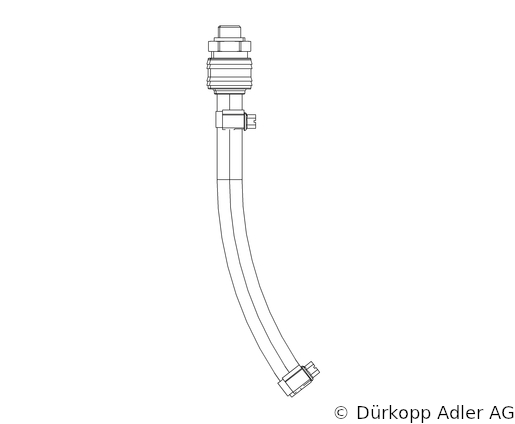

Pneumatic connection package [0797 003031]:
Pneumatic connection package
BOBBIN THREAD MOINITOR, 1N., XXL-HOOK [0867 594034]:
Photoelectric thread monitor for the remaining bobbin thread
PNEUMATIC SMALL PARTS PACKAGE [0867 594304]:
Mounting bracket
THREAD NIPPER [0867 594334]:
Thread nipper
ELECTRONIC BACK TACK LEVER [0867 594404]:
Electronic back tack lever
NEEDLE COOLER, TOP (NK 20-1) [0867 594464]:
Needle cooler, top
Attachement kit "tilt assitance" 120N [0867 594604]:
Attachment kit „tilt assistance“

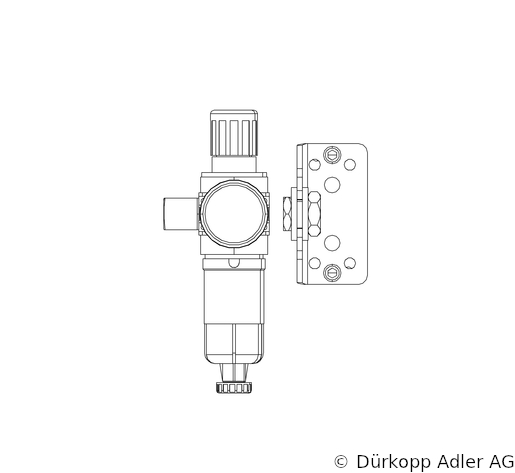

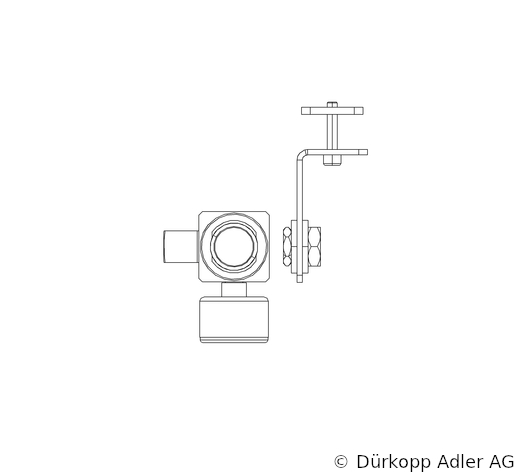

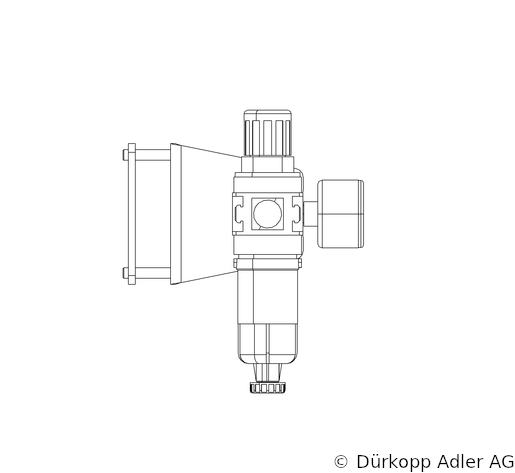

MAINTENANCE UNIT [9780 000108]:
Maintenance unit
KNEE SWITCH SUBD9 [9880 002010]:
Knee switch for activating additional functions
Standinstallation [4867 990004 ZM]:
Assembly cost
stand set w.table 1060X600 F.DAC [MG55 400914]:
Stand set, table top 1060x600 mm

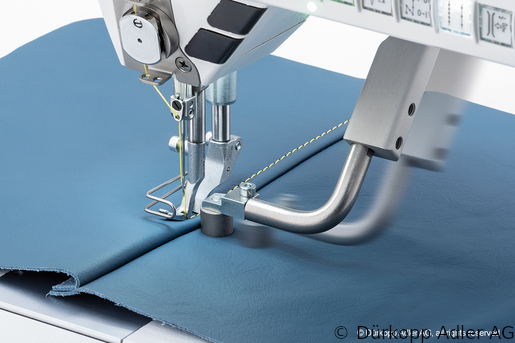

MOTOR-DRIVEN EDGE GUIDE, X-,Y-AXIS [4867 590024]:
Motor-driven edge guide (X- and Z-axis) with external stepper motor card
Russian name
D867-190942 Одноигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990004 043)
Specifications
| ART | 4867 990004 043 |
|---|---|
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |
| DESCRIPTION_RU | Dürkopp Adler 1-игольная челночная строчка: планшетная нижняя подача, игольная подача и попеременная верхняя подача лапки. Особенности: швейная головка челночного стежка со световым барьером для контроля длины клапана, электронное позицион… |
| MATERIALS | ["4867 990004", "0791 867535", "0791 867752 DE", "0791 867752 PL", "4867 E00209", "0797 003031", "0867 594034", "0867 594304", "0867 594334", "0867 594404", "0867 594464", "0867 594604", "9780 000108", "9880 002010", "4867 990004 ZM", "MG5… |
| MORE_PHOTO | ["263933", "263934", "263935", "263936", "263937", "263938", "263939", "263940", "263941", "263942"] |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 1 |
| TIP_CHELONOKA | XXL- двойной челнок (32mm) |
| PODEM_SHVEYNOY_LAPKI_V_MM | 20 |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | С плоской платформой |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| MATERIAL | Средние |
| TOLSHCHINA_IGLY_NM | ["120", "130", "140", "110", "135", "125", "115"] |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 3500 |
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 9 |
| SHVEYNYY_MATERIAL | Средний материал |
| MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA | 20 |
| KLASS | D867 |
| SUBKLASS | 190942 |
