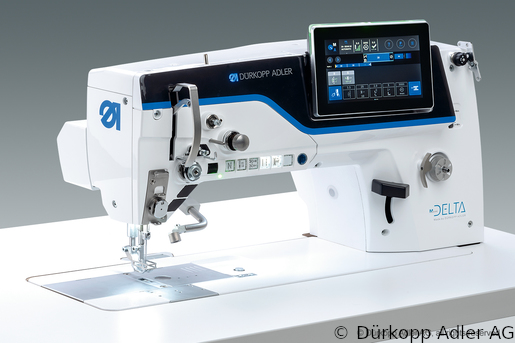

D867-190942 Dürkopp Adler DELTA 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine (4867 990004 028)
Price
- Цена отпускная19272.75 EUR
- AvailabilityAvailable to order
Description
Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and
alternating foot top feed.
Features: lockstitch sewing head with light barrier for flap-length
control, electronic Needle Positioning Electronic hand wheel,
material thickness detection, motor dirven foot lifting and bartacking
automatic, programmable, motor driven, control elements for stichlength,
foot lifting an pressure, safety clutch, Oil level indicator
XXL- two piece hook (32mm)
Maximum Stitch Length (in mm): 9,00
Needle thickness (nm): 140, 145, 150, 160, 170, 180.
D867-190942 SEWING MACHINE [4867 990004]:
Single needle lockstitch machine, with bottom feed, needle feed and
alternating feet, motor-driven sewing foot lift and
seam back tacking. Programmable motor-driven adjusting elements for
stitch length, foot stroke,sewing foot pressure and needle thread
tension. With programmable jog dial for needle positioning, material
thickness detection, maintenance indicator, integrated sewing light
(LED) and under-arm light with dimmer and integrated, intelligent motor
driven bobbin winder
4867 E 5 sew. equipment [4867 E00509]:
Sewing equipment, needle size Nm 140-180, max. stitch length 9 mm
THREAD NIPPER [0867 594334]:
Thread nipper
ELECTRONIC BACK TACK LEVER [0867 594404]:
Electronic back tack lever
KNEE SWITCH SUBD9 [9880 002010]:
Knee switch for activating additional functions
Standinstallation [4867 990004 ZM]:
Assembly cost
stand set w.table 1060X600 F.DAC [MG55 400914]:
Stand set, table top 1060x600 mm

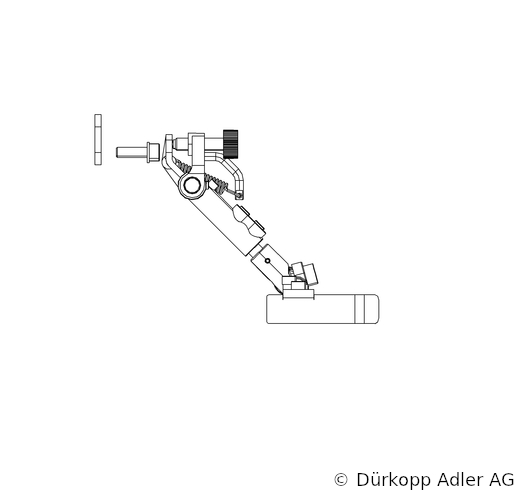

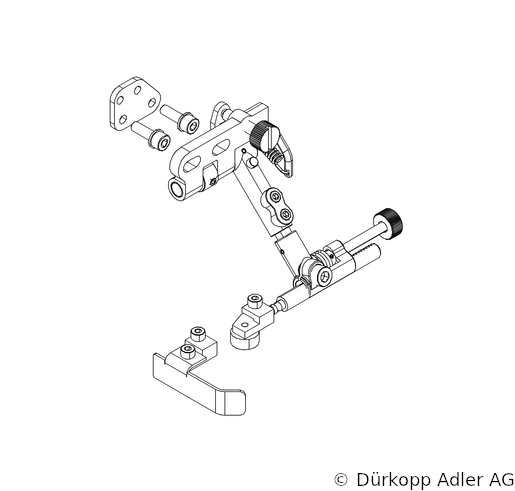

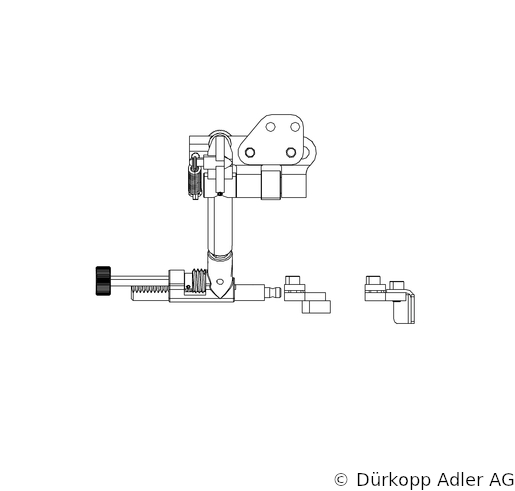

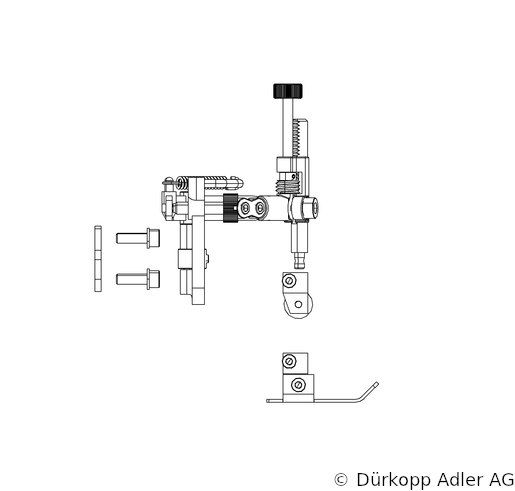

Combined hinged roller [N800 080004]:
Combined roller and straight guide, right, hinged, elevation adjustment
Russian name
D867-190942 Одноигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990004 028)
Specifications
| ART | 4867 990004 028 |
|---|---|
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |
| DESCRIPTION_RU | Dürkopp Adler 1-игольная челночная строчка: планшетная нижняя подача, игольная подача и попеременная верхняя подача лапки. Особенности: швейная головка челночного стежка со световым барьером для контроля длины клапана, электронное позицион… |
| MATERIALS | ["4867 990004", "0791 867535", "0791 867752 EN", "4867 E00509", "4867 E00312", "0867 594334", "0867 594404", "9880 002010", "4867 990004 ZM", "MG55 400914", "N800 080004"] |
| MORE_PHOTO | ["279380", "279381", "279382", "279383", "279384", "279385"] |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 1 |
| TIP_CHELONOKA | XXL- двойной челнок (32mm) |
| PODEM_SHVEYNOY_LAPKI_V_MM | 20 |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | С плоской платформой |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| MATERIAL | Средние |
| TOLSHCHINA_IGLY_NM | ["140", "150", "160", "180", "170", "145"] |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 3500 |
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 9 |
| SHVEYNYY_MATERIAL | Средний материал |
| MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA | 20 |
| KLASS | D867 |
| SUBKLASS | 190942 |
