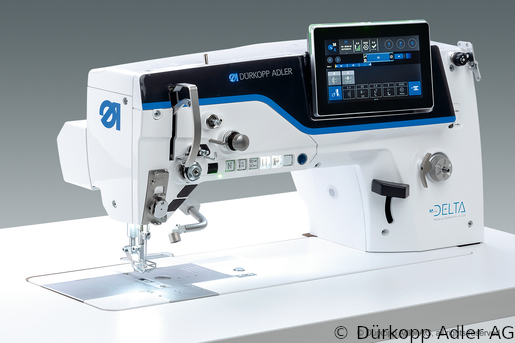

D867-190922 Dürkopp Adler DELTA 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine (4867 990001 WAP)

SKU: 4867 990001 WAP
Price
  • Цена отпускная20833.75 EUR

Inquire More in section

Description

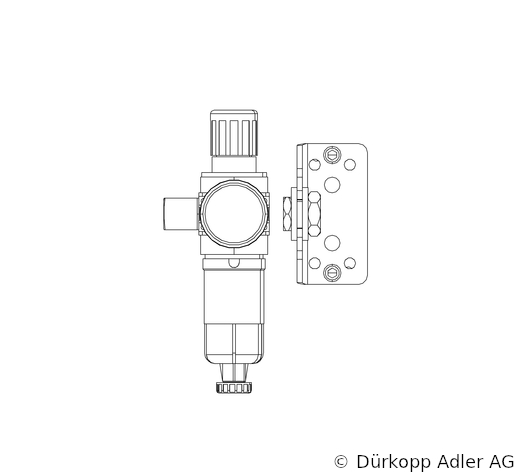

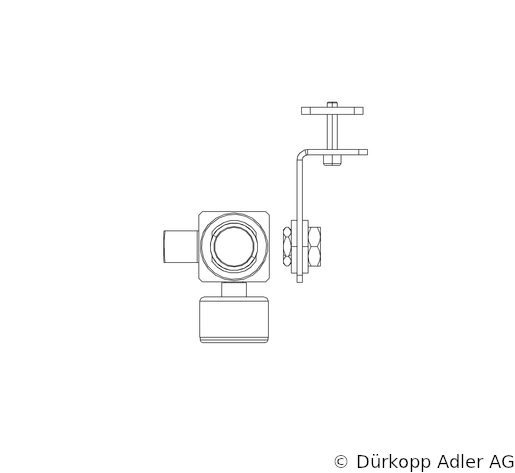

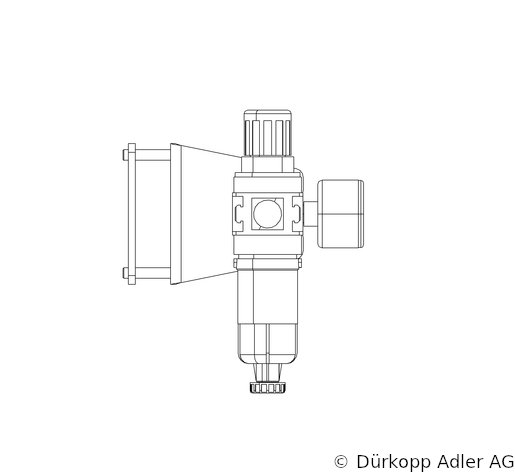

Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed. Features: lockstitch sewing head with light barrier for flap-length control, electronic Needle Positioning Electronic hand wheel, material thickness detection, motor dirven foot lifting and bartacking automatic, programmable, motor driven, control elements for stichlength, foot lifting an pressure, safety clutch, Oil level indicator XL- two piece hook (28mm) Maximum Stitch Length (in mm): 9,00 Needle thickness (nm): 110, 115, 120, 125, 130, 135, 140. D867-190922 SEWING MACHINE [4867 990001]: Single needle lockstitch machine, with bottom feed, needle feed and alternating feet, motor-driven sewing foot lift and seam back tacking. Programmable motor-driven adjusting elements for stitch length, foot stroke,sewing foot pressure and needle thread tension. With programmable jog dial for needle positioning, material thickness detection, maintenance indicator, integrated sewing light (LED) and under-arm light with dimmer and integrated, intelligent motor driven bobbin winder 4867 E 2 sew. equipment [4867 E00209]: Sewing equipment, needle size Nm 110-140, max. stitch length 9mm PNEUMATIC CONNECTIO [0797 003031]: Pneumatic connection package PNEUMATIC CONNECTIO PREMIUM [0867 593534]: Parts set for connecting optional pneumatic equipments thread monitor RFW 20-1 [0867 594014]: Photoelectric thread monitor for the remaining bobbin thread WE-8 MAINTENANCE UN [9780 000108]: Maintenance unit Kit lever lock [0867 594404]: Electronic back tack lever BAUGRUPPE NFC [9874 867022]: NFC (Near Field Communication) stand set w.table 1060X600 F.DAC [MG55 400914]: Stand set, table top 1060x600 mm Motor-driven horizontal edge guide [4867 590014]: Motor-driven edge guide (X-axis) with external stepper motor card

Russian name

D867-190922 Одноигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990001 WAP)

Specifications

PRODUKTSIYA ["Мягкая мебель", "Кожгалантерея"]
ART 4867 990001 WAP
DESCRIPTION_RU Dürkopp Adler 1-игольная челночная строчка: планшетная нижняя подача, игольная подача и попеременная верхняя подача лапки. Особенности: швейная головка челночного стежка со световым барьером для контроля длины клапана, электронное позицион…
MATERIALS ["4867 990001", "0791 867535", "0791 867752 EN", "4867 E00209", "0797 003031", "0867 594014", "0867 593534", "0867 594304", "0867 594404", "9780 000108", "9874 867022", "MG55 400914", "4867 590014"]
MORE_PHOTO ["275739", "275740", "275741", "275742", "275743", "275744", "275745", "275746", "275747", "275748"]
TYPE_STICH Челночный
KOLICHESTVO_IGL 1
TIP_CHELONOKA XL- двойной челнок (28mm)
PODEM_SHVEYNOY_LAPKI_V_MM 20
OSNOVNYE_TEKHNICHESKIE_KATEGORII С плоской платформой
PROIZVODITEL Dürkopp Adler
TIP_TRANSPORTA Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка
MATERIAL Средние
TOLSHCHINA_IGLY_NM ["120", "130", "140", "110", "135", "125", "115"]
MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH 4000
MAKSIMALNAYA_DLINA_STEZHKA_V_MM 9
SHVEYNYY_MATERIAL Средний материал
MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA 20
KLASS D867
SUBKLASS 190922
