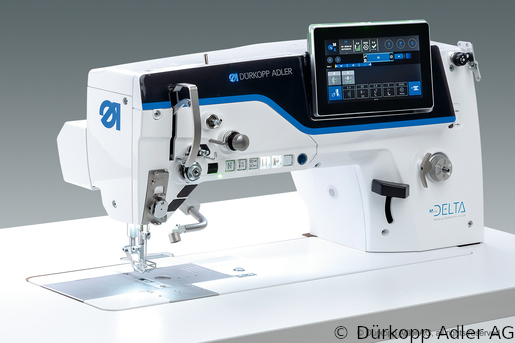

D867-190922 Dürkopp Adler DELTA 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine (4867 990001 074)
Price
- Цена отпускная21197.75 EUR
Description
Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and
alternating foot top feed.
Features: lockstitch sewing head with light barrier for flap-length
control, electronic Needle Positioning Electronic hand wheel,
material thickness detection, motor dirven foot lifting and bartacking
automatic, programmable, motor driven, control elements for stichlength,
foot lifting an pressure, safety clutch, Oil level indicator
XL- two piece hook (28mm)
Maximum Stitch Length (in mm): 9,00
Needle thickness (nm): 110, 115, 120, 125, 130, 135, 140.
D867-190922 SEWING MACHINE [4867 990001]:
Single needle lockstitch machine, with bottom feed, needle feed and
alternating feet, motor-driven sewing foot lift and
seam back tacking. Programmable motor-driven adjusting elements for
stitch length, foot stroke,sewing foot pressure and needle thread
tension. With programmable jog dial for needle positioning, material
thickness detection, maintenance indicator, integrated sewing light
(LED) and under-arm light with dimmer and integrated, intelligent motor
driven bobbin winder
4867 E 2 sew. equipment [4867 E00209]:
Sewing equipment, needle size Nm 110-140, max. stitch length 9mm
ELECTRONIC BACK TACK LEVER [0867 594404]:
Electronic back tack lever
Attachement kit "tilt assitance" 120N [0867 594604]:
Attachment kit „tilt assistance“
KNEE SWITCH SUBD9 [9880 002010]:
Knee switch for activating additional functions
MOUNTING KIT [9880 867100]:
Mounting kit for Halogen sewing ligths
Standinstallation [4867 990001 ZM]:
Assembly cost
stand set w.table 1060X600 F.DAC [MG55 400914]:
Stand set, table top 1060x600 mm

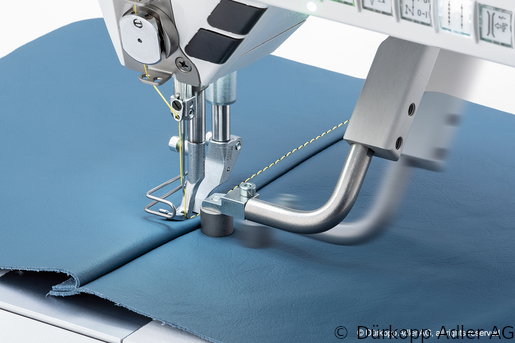

MOTOR-DRIVEN EDGE GUIDE, X-,Y-AXIS [4867 590024]:
Motor-driven edge guide (X- and Z-axis) with external stepper motor card
Russian name
D867-190922 Одноигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990001 074)
Specifications
| ART | 4867 990001 074 |
|---|---|
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |
| DESCRIPTION_RU | Dürkopp Adler 1-игольная челночная строчка: планшетная нижняя подача, игольная подача и попеременная верхняя подача лапки. Особенности: швейная головка челночного стежка со световым барьером для контроля длины клапана, электронное позицион… |
| MATERIALS | ["4867 990001", "0791 867535", "0791 867752 DE", "4867 E00209", "0867 594404", "0867 594604", "9822 560021", "9880 002010", "9880 867100", "4867 990001 ZM", "MG55 400914", "4867 590024"] |
| MORE_PHOTO | ["289626", "289627", "289628"] |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 1 |
| TIP_CHELONOKA | XL- двойной челнок (28mm) |
| PODEM_SHVEYNOY_LAPKI_V_MM | 20 |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | С плоской платформой |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| MATERIAL | Средние |
| TOLSHCHINA_IGLY_NM | ["120", "130", "140", "110", "135", "125", "115"] |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 4000 |
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 9 |
| SHVEYNYY_MATERIAL | Средний материал |
| MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA | 20 |
| KLASS | D867 |
| SUBKLASS | 190922 |
