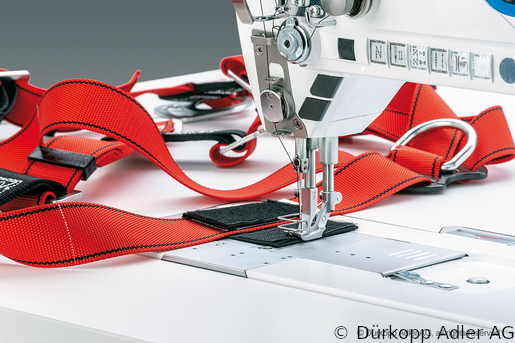

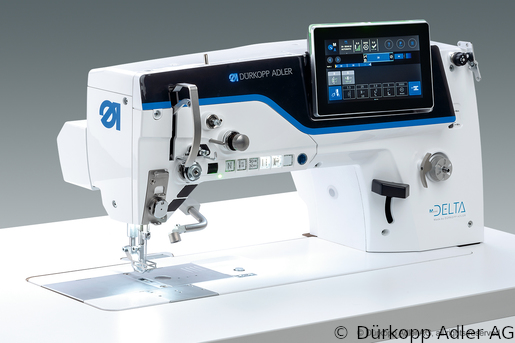

D867-190922 Dürkopp Adler DELTA 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine (4867 990001 067)
Price
- Цена отпускная21264.25 EUR
Description
Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and
alternating foot top feed.
Features: lockstitch sewing head with light barrier for flap-length
control, electronic Needle Positioning Electronic hand wheel,
material thickness detection, motor dirven foot lifting and bartacking
automatic, programmable, motor driven, control elements for stichlength,
foot lifting an pressure, safety clutch, Oil level indicator
XL- two piece hook (28mm)
Maximum Stitch Length (in mm): 9,00
Needle thickness (nm): 110, 115, 120, 125, 130, 135, 140.
D867-190922 SEWING MACHINE [4867 990001]:
Single needle lockstitch machine, with bottom feed, needle feed and
alternating feet, motor-driven sewing foot lift and
seam back tacking. Programmable motor-driven adjusting elements for
stitch length, foot stroke,sewing foot pressure and needle thread

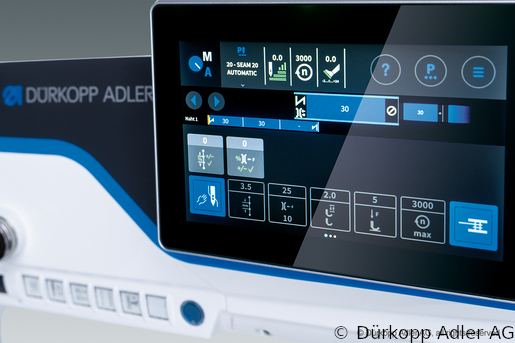

tension. With programmable jog dial for needle positioning, material
thickness detection, maintenance indicator, integrated sewing light
(LED) and under-arm light with dimmer and integrated, intelligent motor
driven bobbin winder
4867 E 2 sew. equipment [4867 E00209]:
Sewing equipment, needle size Nm 110-140, max. stitch length 9mm

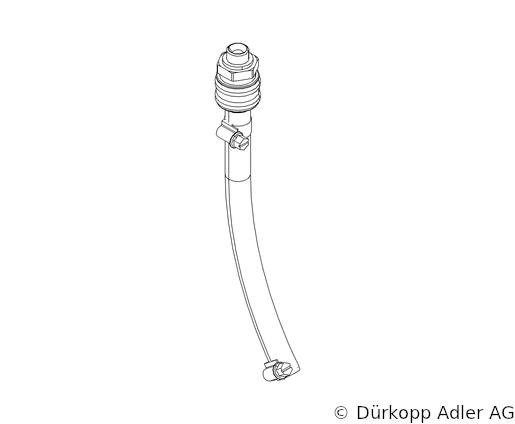

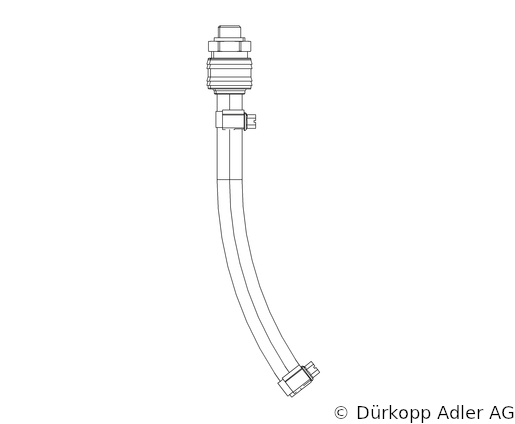

Pneumatic connection package [0797 003031]:
Pneumatic connection package
BOBBIN THREAD MONITOR, 1N., XL-GREIFER [0867 594014]:
Photoelectric thread monitor for the remaining bobbin thread
PNEUMATIC SMALL PARTS PACKAGE [0867 594304]:
Mounting bracket
ELECTRONIC BACK TACK LEVER [0867 594404]:
Electronic back tack lever

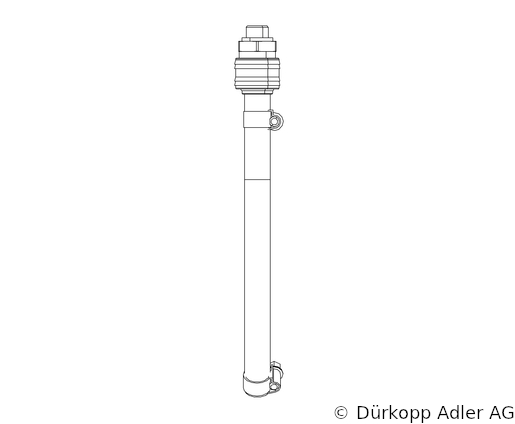

NEEDLE COOLER, TOP (NK 20-1) [0867 594464]:
Needle cooler, top
Attachement kit "tilt assitance" 120N [0867 594604]:
Attachment kit „tilt assistance“

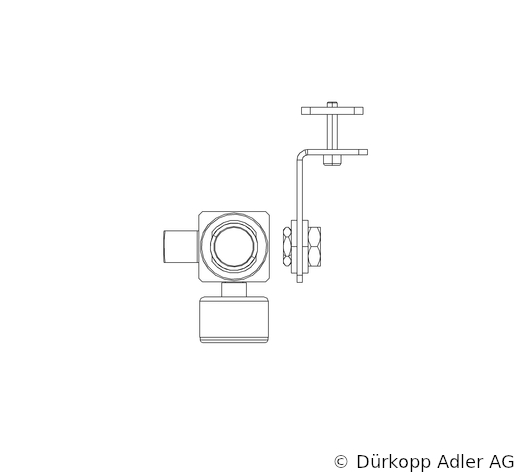

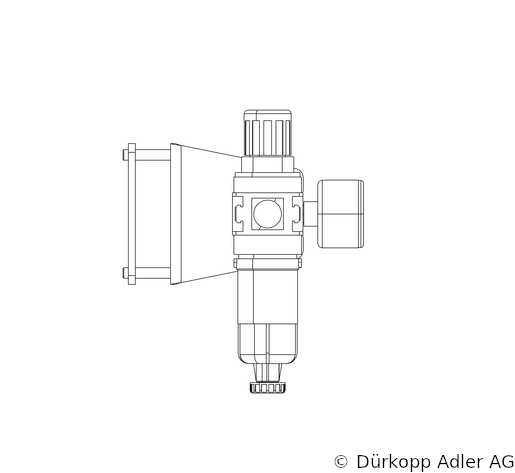

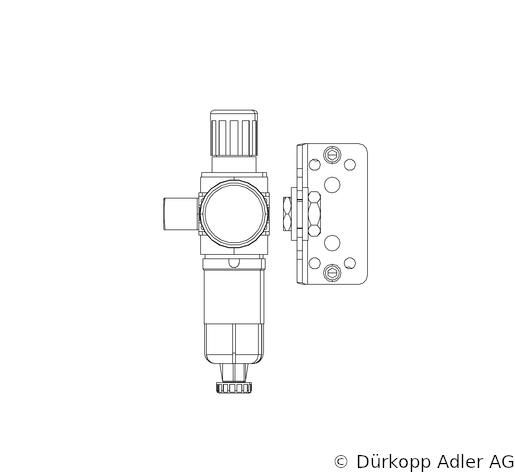

MAINTENANCE UNIT [9780 000108]:
Maintenance unit
KNEE SWITCH SUBD9 [9880 002010]:
Knee switch for activating additional functions
MOUNTING KIT [9880 867100]:
Mounting kit for Halogen sewing ligths

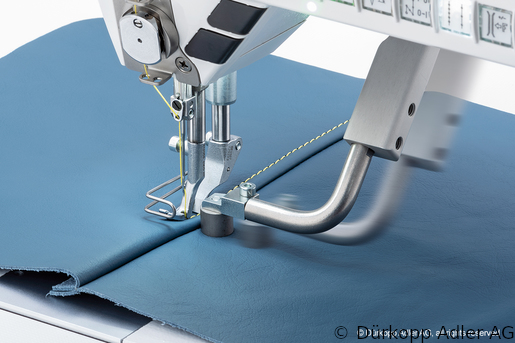

MOTOR-DRIVEN EDGE GUIDE, X-AXIS [4867 590014]:
Motor-driven edge guide (X-axis) with external stepper motor card
Russian name
D867-190922 Одноигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990001 067)
Specifications
| ART | 4867 990001 067 |
|---|---|
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |
| DESCRIPTION_RU | Dürkopp Adler 1-игольная челночная строчка: планшетная нижняя подача, игольная подача и попеременная верхняя подача лапки. Особенности: швейная головка челночного стежка со световым барьером для контроля длины клапана, электронное позицион… |
| MATERIALS | ["4867 990001", "0791 867535", "0791 867752 DE", "4867 E00209", "0797 003031", "0867 594014", "0867 594304", "0867 594404", "0867 594464", "0867 594604", "9780 000108", "9822 560021", "9880 002010", "9880 867100", "4867 590014"] |
| MORE_PHOTO | ["267645", "267646", "267647", "267648", "267649", "267650", "267651", "267652", "267653", "267654"] |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 1 |
| TIP_CHELONOKA | XL- двойной челнок (28mm) |
| PODEM_SHVEYNOY_LAPKI_V_MM | 20 |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | С плоской платформой |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| MATERIAL | Средние |
| TOLSHCHINA_IGLY_NM | ["120", "130", "140", "110", "135", "125", "115"] |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 4000 |
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 9 |
| SHVEYNYY_MATERIAL | Средний материал |
| MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA | 20 |
| KLASS | D867 |
| SUBKLASS | 190922 |
