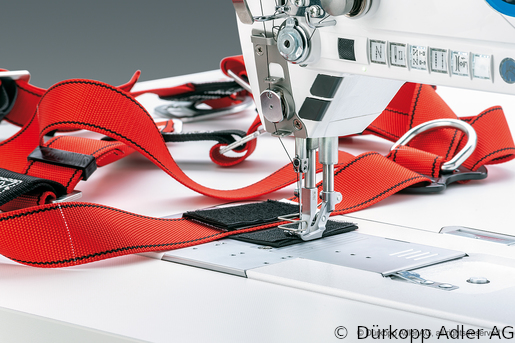

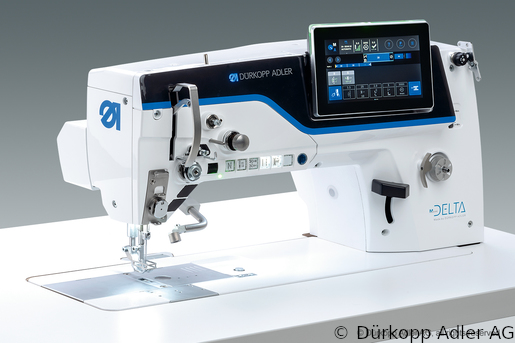

D867-190922 Dürkopp Adler DELTA 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed sewing machine (4867 990001 036)

SKU: 4867 990001 036
Price
  • Цена отпускная19325.25 EUR

Inquire More in section

Description

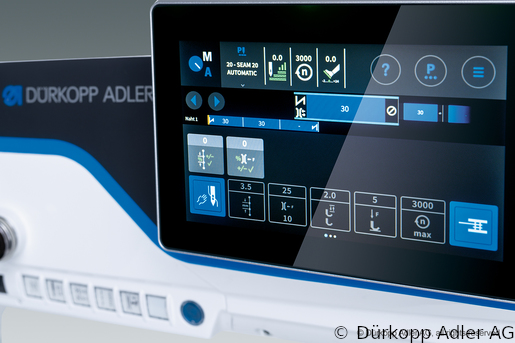

Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed. Features: lockstitch sewing head with light barrier for flap-length control, electronic Needle Positioning Electronic hand wheel, material thickness detection, motor dirven foot lifting and bartacking automatic, programmable, motor driven, control elements for stichlength, foot lifting an pressure, safety clutch, Oil level indicator XL- two piece hook (28mm) Maximum Stitch Length (in mm): 9,00 Needle thickness (nm): 110, 115, 120, 125, 130, 135, 140. D867-190922 SEWING MACHINE [4867 990001]: Single needle lockstitch machine, with bottom feed, needle feed and alternating feet, motor-driven sewing foot lift and seam back tacking. Programmable motor-driven adjusting elements for stitch length, foot stroke,sewing foot pressure and needle thread tension. With programmable jog dial for needle positioning, material thickness detection, maintenance indicator, integrated sewing light (LED) and under-arm light with dimmer and integrated, intelligent motor driven bobbin winder 4867 E 2 sew. equipment [4867 E00209]: Sewing equipment, needle size Nm 110-140, max. stitch length 9mm THREAD NIPPER [0867 594334]: Thread nipper ELECTRONIC BACK TACK LEVER [0867 594404]: Electronic back tack lever Attachement kit "tilt assitance" 120N [0867 594604]: Attachment kit „tilt assistance“ Standinstallation [4867 990001 ZM]: Assembly cost stand set w.table 1060X600 F.DAC [MG55 400914]: Stand set, table top 1060x600 mm SPACER hinged roller [N800 080001]: right, with roll, can be swivelled upwards

Russian name

D867-190922 Одноигольная швейная машина челночного стежка с плоской платформой со встроенным приводом, с нижним, игольным и верхним альтернирующим транспортером лапкой для средних и тяжелых материалов. DELTA (4867 990001 036)

Specifications

ART 4867 990001 036
PRODUKTSIYA ["Мягкая мебель", "Кожгалантерея"]
DESCRIPTION_RU Dürkopp Adler 1-игольная челночная строчка: планшетная нижняя подача, игольная подача и попеременная верхняя подача лапки. Особенности: швейная головка челночного стежка со световым барьером для контроля длины клапана, электронное позицион…
MATERIALS ["4867 990001", "0791 867535", "0791 867752 EN", "4867 E00209", "0867 594334", "0867 594404", "0867 594604", "4867 990001 ZM", "MG55 400914", "N800 080001"]
MORE_PHOTO ["268459", "268460", "268461", "268462", "268463", "268464"]
TYPE_STICH Челночный
KOLICHESTVO_IGL 1
TIP_CHELONOKA XL- двойной челнок (28mm)
PODEM_SHVEYNOY_LAPKI_V_MM 20
OSNOVNYE_TEKHNICHESKIE_KATEGORII С плоской платформой
PROIZVODITEL Dürkopp Adler
TIP_TRANSPORTA Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка
MATERIAL Средние
TOLSHCHINA_IGLY_NM ["120", "130", "140", "110", "135", "125", "115"]
MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH 4000
MAKSIMALNAYA_DLINA_STEZHKA_V_MM 9
SHVEYNYY_MATERIAL Средний материал
MAKSIMALNAYA_PROSHIVAEMAYA_TOLSHCHINA 20
KLASS D867
SUBKLASS 190922
