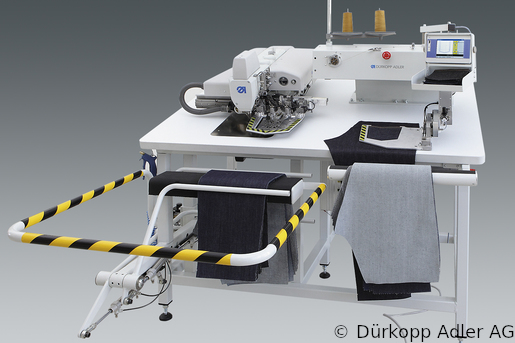

906-01 Dürkopp Adler 1-Needle lockstitch automatic sewing unit for setting of pockets Clamp- or dog bottom feed and/or clamp-, dog- oder rail top feed (0906 990001 002)
Price
- Цена отпускная66631.25 EUR
Description
Dürkopp Adler 1-Needle lockstitch automatic setting of pockets Clamp- or
dog bottom feed and/or clamp-, dog- oder rail top feed.
Features: automatic material transfer, electronic needle thread monitor,
electronic programmable thread tension, thread clamping device,
short thread trimmer, programmable foot stroke adjustment,
stacker for up to 70 pieces of, bobbin thread control by programmable
stitch counting or bobbin thread monitor optional large vertical hook
with CTB bobbins 32mm.
SEWING MACHINE 906-01 [0906 990001]:
for automatic setting of pockets. For medium-weight material such as
jeans, work wear etc. With single and twin seam, with straight tack
and zigzag tack, max. sewing field 210 x 210 mm
911 E 7 sew. equipment [0911 E00007]:
Sewing equipment, needle size 134/130, stitch length from 3.5 mm up to
12,7 mm
PNEUMATIC CONNECTIO [0797 003031]:
Pneumatic connection package

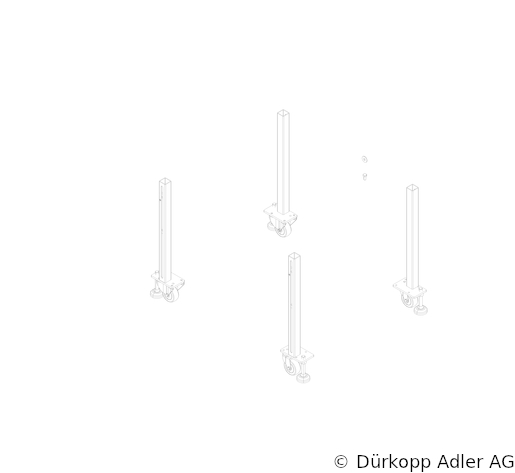

Parts set height adjustment [0911 407524]:
Height adjustment for table stand
Russian name
906-01 Швейная установка челночного стежка для автоматического настрачивания накладных карманов на джинсы и рабочую одежду (0906 990001 002)
Specifications
| ART | 0906 990001 002 |
|---|---|
| PRODUKTSIYA | Джинсы |
| DESCRIPTION_RU | Dürkopp Adler 1-игольная челночная строчка, автоматическая настройка карманов. Нижняя подача с зажимом или собачкой и/или верхняя подача с зажимом, собачкой или по рельсе. Особенности: автоматическая передача материала, электронный контрол… |
| MATERIALS | ["0906 990001", "0791 911500", "0791 906740 EN", "0911 E00007", "0797 003031", "0911 407524"] |
| MORE_PHOTO | ["274466", "274467", "274468", "274469", "274470", "274471", "274472", "274473", "274474", "274475", "274476"] |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 1 |
| TIP_CHELONOKA | Большой вертикальный челнок с CTB шпулей 32mm |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | Автоматическое настрачивание кармана |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Транспортер с зажимом или рейкой снизу и/или транспортер с зажимом, рейкой или направляющей сверху |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 3000 |
| ELEKTROPODKLYUCHENIE | 1 x 190-240 V 50/60Hz |
| SFERY_PRIMENENIYA | Технология джинс |
| RAZMER_ZONY_SHITYA | 210 X 210 mm |
| KLASS | 906 |
| SUBKLASS | 01 |
