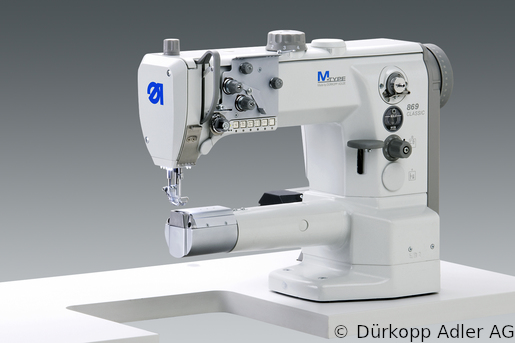

869-180122 Dürkopp Adler 1-Needle lockstitch cylinder arm bottom feed, needle feed and alternating foot top feed sewing machine (0869 990002 012)

SKU: 0869 990002 012
Price
  • Цена отпускная11957.75 EUR
  • AvailabilityAvailable to order

Inquire More in section

Description

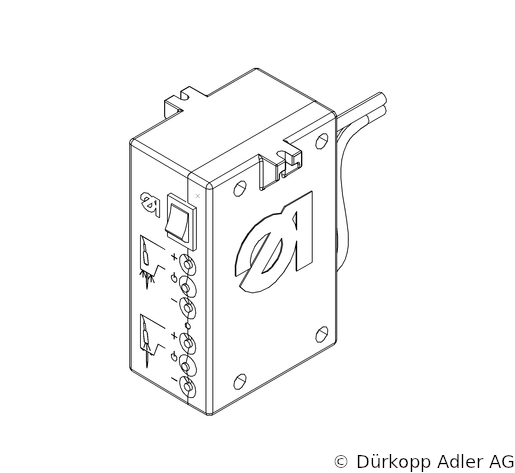

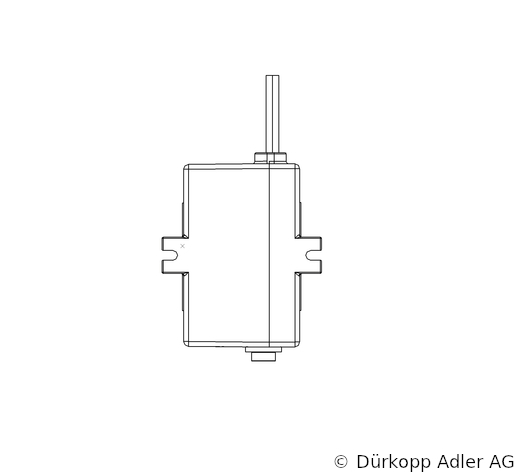

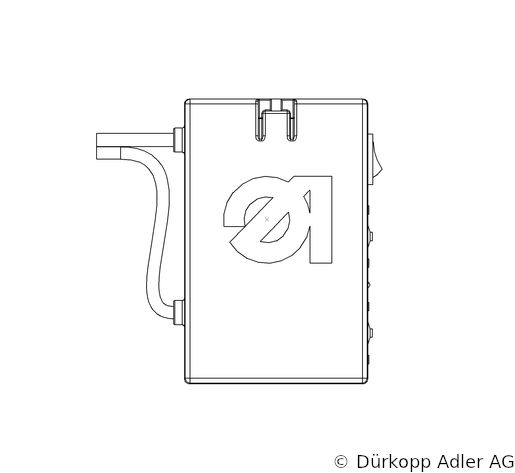

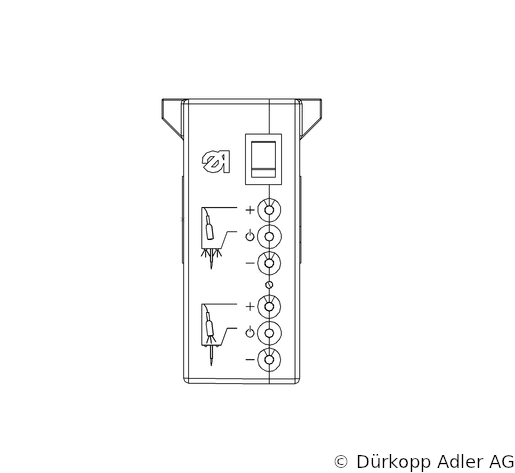

Dürkopp Adler 1-Needle lockstitch cylinder arm bottom feed, needle feed and alternating foot top feed. Features: electropneumatic thread trimmer, electropneumatic seam backtacking, electropneumatic sewing foot lift, safety clutch large, two-piece vertical hook Operation purpose: for sewing operations close to the edge Maximum Stitch Length (in mm): 6,00 Needle thickness (nm): 110, 120, 130, 140. 869-180122 SEWING MACHINE [0869 990002]: elliptical movement of bottom feed is disengageable for binding operation Set of parts f. motor DC1550/1x230V/300 [9880 669004]: Set of parts for mini-motor type DC1550/DA321G 1x 230V 50/60 HZ 3.000 rpm 869 E 14/6 sew. equipment [0869 E01406]: from 1 mm on the right to the needle, Manuel Backtack Lever [0867 590464]: Manuel Backtack Lever POWER SUPPLY [9850 001089]: Sewing light transformer for dimmable LED sewing lights SEWING LIGHT [9880 867102]: Integrated sewing light (LED)

Russian name

869-180122 Одноигольная машина челночного стежка с цилиндрической, рукавной платформой. Нижний, игольный транспортеры и верхний альтернирующий транспортер лапка (0869 990002 012)

Specifications

ART 0869 990002 012
DESCRIPTION_RU Dürkopp Adler 1-игольная машина челночного стежка с подачей снизу рычага цилиндра, игольной подачей и попеременной подачей лапки сверху. Особенности: электропневматический обрезка нити, электропневматическая закрепка шва, электропневматиче…
MATERIALS ["0869 990002", "0791 869502", "9880 669004", "0791 869741", "0869 E01406", "0867 590464", "9850 001089", "9880 867102"]
MORE_PHOTO ["277773", "277774", "277775", "277776", "277777", "277778", "277779", "277780"]
TYPE_STICH Челночный
KOLICHESTVO_IGL 1
TIP_CHELONOKA Большой, двойной вертикальный челнок
OSNOVNYE_TEKHNICHESKIE_KATEGORII С цилиндрическим рукавом
PROIZVODITEL Dürkopp Adler
TIP_TRANSPORTA Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка
VYSOTA_PODEMA_LAPKI 20
PRIMENENIE_PO_OPERATSIYAM Для швейных операций рядом с краем
MATERIAL Средние
TOLSHCHINA_IGLY_NM ["120", "130", "140", "110"]
MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH 2800
MAKSIMALNAYA_DLINA_STEZHKA_V_MM 6
KLASS 869
SUBKLASS 180122
