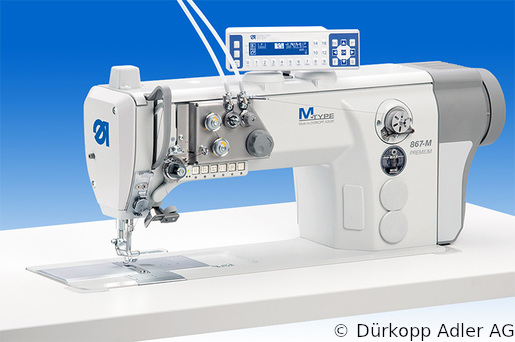

867-190945-M Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0867 991405 060)
Price
- Цена отпускная19195.75 EUR
- AvailabilityAvailable to order
Description
Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and
alternating foot top feed.
Features: integrated BLDC sewing drive incl. DAC comfort control box
electromagnetic short thread trimmer with a remaining thread length of
approx. 5 mm, electronic Needle Positioning Electronic hand wheel,
integrated dimmable LED sewing light, material thickness detection,
motor dirven foot lifting and bartacking automatic, programmable, motor
driven, control elements for stichlength, foot lifting an pressure,
programmable electropneumatik thread tension, safety clutch,
Oil level indicator
Maximum Stitch Length (in mm): 9,00
Needle thickness (nm): 110, 115, 120, 125, 130, 135, 140.
accessories 867-M-PREM KFA/1-N [0791 867537]:
Acessories package
867 E 212/0-9 sew. equipment [0867 E21209]:
Special sewing equipment “NSB”, needle size Nm 110-140, max. titch
length 9 mm
PNEUMATIC CONNECTIO [0797 003031]:
Pneumatic connection package
SLIDE MONITORING M-TYPE FLATBED [0867 151174]:
Hook cover monitoring, right and left
Only in combination with adapter cable 0867 592224
ADAPTER with cable [0867 592224]:
Adpater cable
PNEUMATIC CONNECTIO PREMIUM [0867 593534]:
Parts set for connecting optional pneumatic equipments

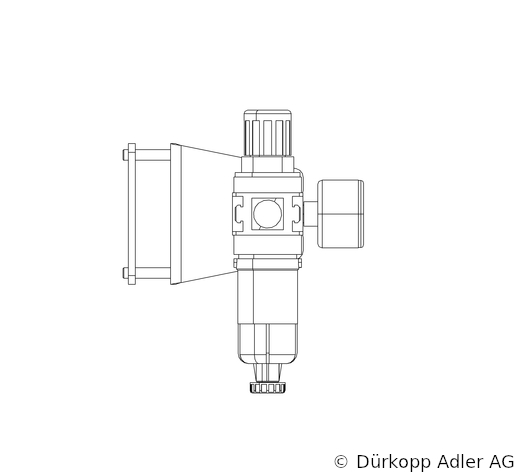

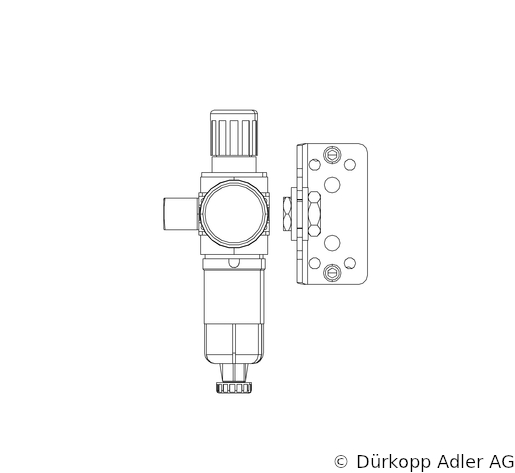

WE-8 MAINTENANCE UN [9780 000108]:
Maintenance unit

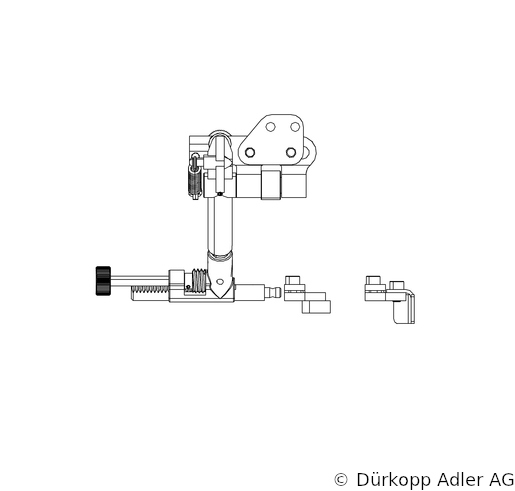

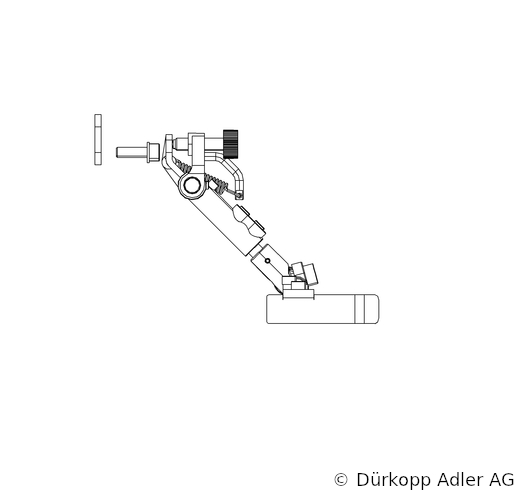

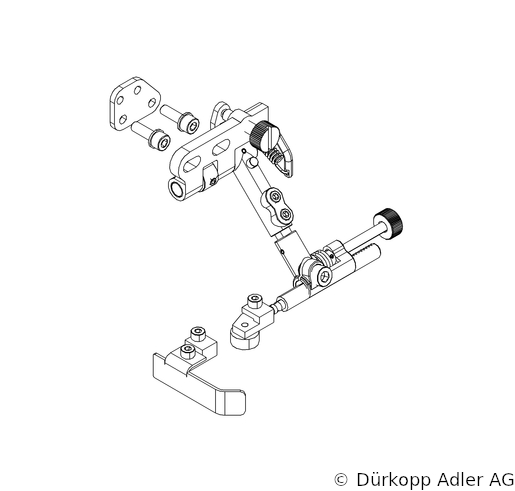

KIT NSB SEAM BEGINNING [0867 593564]:
Function unit „NSB“ (Neat Seam Beginning)

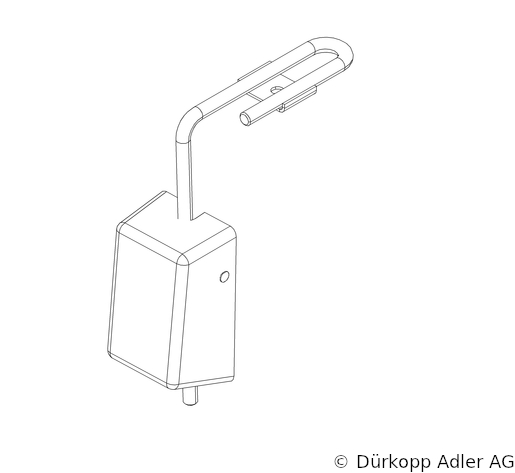

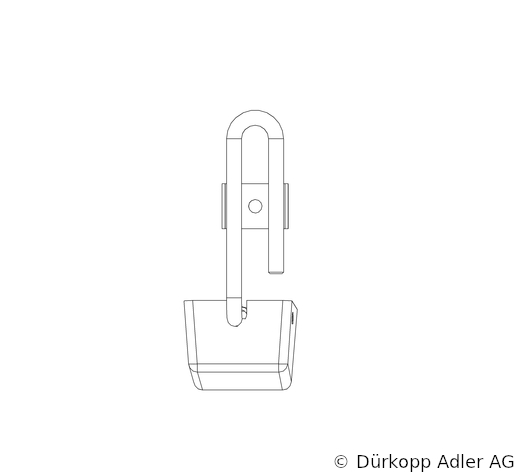

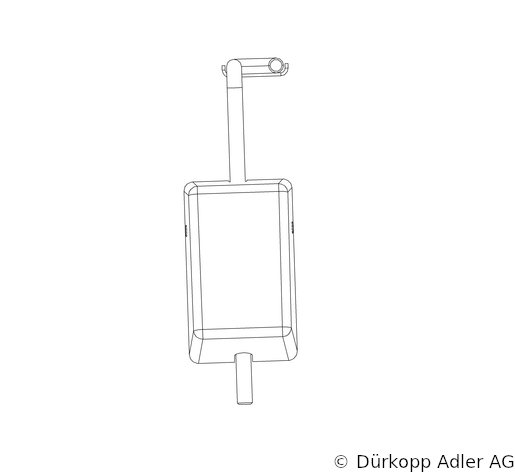

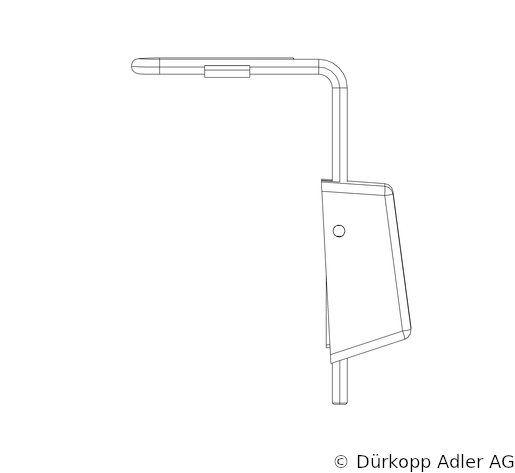

KNEE SWITCH [9880 867120]:
Knee switch for activating additional function
stand set w.table 1060X600 F.DAC [MG55 400544]:
Stand kit with table top 1060 x 600 mm

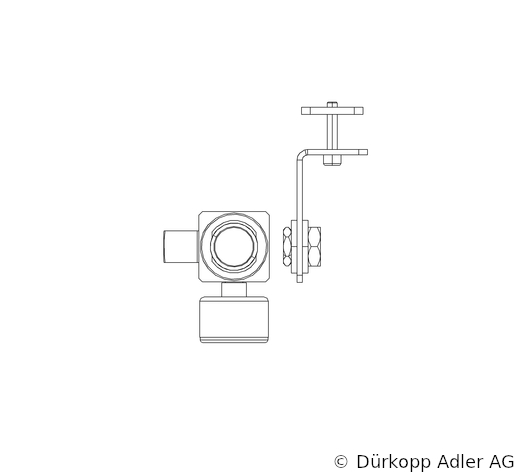

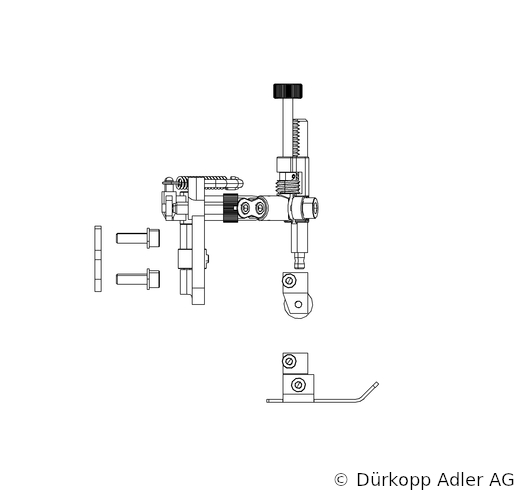

Combined hinged roller [N800 080004]:
Combined roller and straight guide, right, hinged, elevation adjustment
Russian name
867-190945-M Одноигольная машина челночного стежка с плоской платформой. Нижний, игольный транспортеры и верхний альтернирующий транспортер лапка Встроенный привод M-TYPE (0867 991405 060)
Specifications
| ART | 0867 991405 060 |
|---|---|
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |
| DESCRIPTION_RU | Dürkopp Adler 1-игольная челночная строчка: планшетная нижняя подача, игольная подача и попеременная верхняя подача лапки. Особенности: встроенный швейный привод BLDC, вкл. Блок управления DAC Comfort, электромагнитный триммер для обрезки … |
| MATERIALS | ["0867 991405", "0791 867537", "0791 867751 EN", "0791 867980 EN", "0867 E21209", "0797 003031", "0867 151174", "0867 592224", "0867 593534", "0867 593564", "9780 000108", "9880 867120", "MG55 400544", "0867 495024", "N800 080004"] |
| MORE_PHOTO | ["290962", "290963", "290964", "290965", "290966", "290967", "290968", "290969", "290970", "290971", "290972", "290973", "290974", "290975", "290976"] |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 1 |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | С плоской платформой |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| VYSOTA_PODEMA_LAPKI | 20 |
| TOLSHCHINA_IGLY_NM | ["120", "130", "140", "110", "135", "125", "115"] |
| PRIVOD | Встроенный BLDC швейный привод включая DAC comfort блок управления |
| ELEKTROPODKLYUCHENIE | 1 x 190-240 V 50/60Hz |
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 9 |
| KLASS | 867 |
| SUBKLASS | 190945-M |
