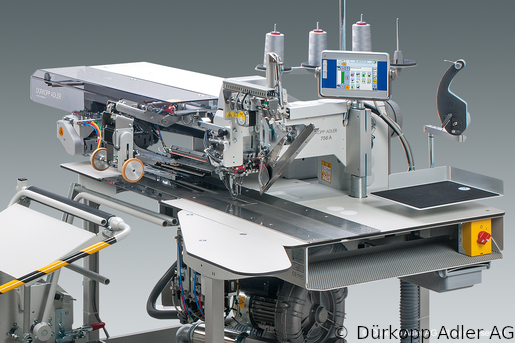

756- Dürkopp Adler 2-Needle lockstitch runstitching of piped pockets, flap pockets and welt pockets camp transport sewing automat (0756 991001 013)

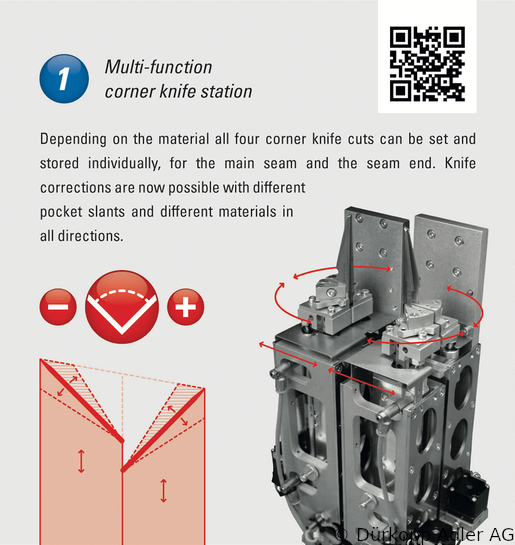

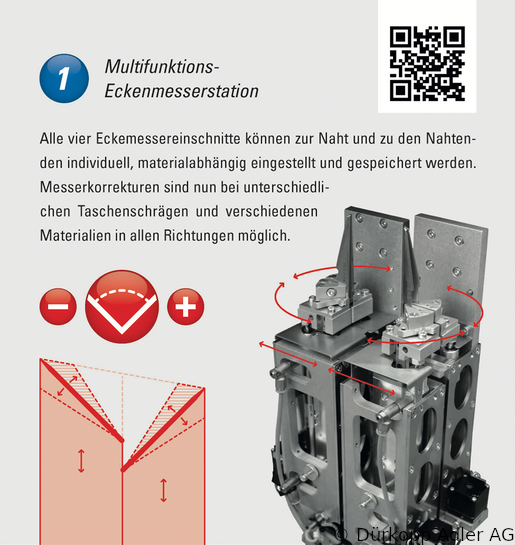

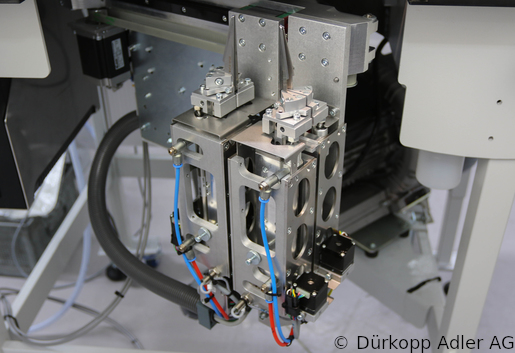

Dürkopp Adler 2-Needle lockstitch runstitching of piped pockets, flap pockets and welt pockets camp transport. Features: 5 Laser-marking lamps separately programmable, swivelling folding station, instant clamp adjustment, air gun with hose, needle thread monitor, back-tacking, pneumatic connection package, bobbin thread monitor, stitch condensing, USB memory stick for data transfer large vertical hook Operation purpose: for double piped pockets Needle distance (mm): 10,0, 12,0 Maximum sewing length: 180,0, 200,0 Folding stamp type: double piped Maximum piping height (mm): 60 Product: tailored jacket/trousers/lining, Jacket. 756 SEWING UNIT [0756 991001]: Sewing unit for runstitching of rectangular or slanted piped pockets, flap pockets and welt pockets. Manual loading of pipings and other additional parts. loading device method A [0755 511014]: Loading device methode A Corner incision device [0755 337504]: Multi-function corner knife station E756-10J-180A-01 Sewing equipment [0756 E21100]: Equipment for double piped pockets, needle distance 10 mm, sewing length from 20 -180 mm, Application: e.g. men's jackets / jackets Sewing equipment N756-12 [0756 281124]: N756-12 = Sewing equipment for 12 mm needle distance Transport roller set [0745 598254]: Transport wheels sewing lamp [0745 598434]: LED sewing light with transformer needle transport [0755 160154]: Programmable needle transport support table large [0755 400774]: Table extension, (large) e.g. jacket application, 600x800mm Pedal holder [0755 400854]: Height-adjustable pedals flap clamp PK35-R180A [0755 412044]: Clamp right for additional parts, such as Flaps on trouser pockets or pocket bag on jacket bags (max 180mm) flap clamp PK35-L180A [0755 412054]: Clamp leftt for additional parts, such as Flaps on jacket pockets (max 180mm) quick clamp adjustment [0755 561024]: Stepper motor-controlled transport clamp adjustment with material spreading prog.laser mark. adjustment along [0755 590434]: Progammable, stepper motor-controlled laser marking across moun. kit f. light barrier [0755 590504]: 2nd light barrier for flap scanning suction device [0755 590554]: Suction device (vaccum) for better material positioning SHIM DEVICE to NA 16mm [0755 590664]: Part set shim device pocket bag clamp [0755 590714]: Pocket bag clamp for use with narrow pocket bags or precutted tapes Part set f. piping strips [0755 590804]: Device for extra wide piping strips for K35-LR180 EJECTOR ROLLERS [0755 590954]: Roll-out device, electronically adjustable Additional trays for small parts [0755 591654]: Additional trays left of the working area Vacuum pump [9880 755014]: Vacuum blower with silencer 230 V, 50-60 Hz Flap scanning slanted left [0755 590514]: Equipment for scanning the angle of left flap Flap scanning slanted right [0755 590524]: Equipment for scanning the angle of right flap Stacker [0755 591464]: Flip stacker, the stacker can be swing out. folder stamp FD-12-180A-01 [0755 651124]: FD-12-180A-01 Folder double piped, nd 12 mm folder stamp FSR-10-180A-01 [0755 661104]: FSR-10-180A-01 Folder single piped right , nd 10 mm folder stamp FSR-12-180A-01 [0755 661124]: FSR-12-180A-01 Folder single piped right , nd 12 mm ID-16-180A-01 [0755 651163]: ID-16-180A-01 Folder insert double piped, nd 16 mm
