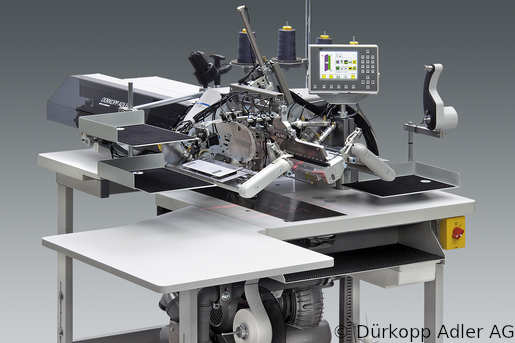

745-35 B Dürkopp Adler 2-Needle lockstitch runstitching of piped pockets, flap pockets and welt pockets sewing automat (0745 991023 012)

Dürkopp Adler 2-Needle lockstitch runstitching of piped pockets, flap pockets and welt pockets Clamp- or dog bottom feed and/or clamp-, dog- oder rail top feed. Features: 5 Laser-marking lamps separately programmable, racks for small parts on the left side, racks for pocket bags on the right side and below the table, suction device for better positioning of the material prepared to be connected to a central vacuum system or a vacuum blower, DAC control including diagnostic program, Dongle for data transfer, lockstitch sewing head with light barrier for flap-length control, swivelling folding station, instant clamp adjustment, air gun with hose, needle thread monitor, pneumatic connection package, step motor controlled corner knife station, separately driven corner knife station, separately driven bobbin winder, bobbin thread monitor, height adjustable stand height 797 - 1076mm, without rolls large vertical hook Operation purpose: for double piped pockets Needle distance (mm): 10,0 Folding stamp type: single piped Product: Coat, Jacket. 745-35 B SEWING UNIT [0745 991023]: With automatic feeding device for piping strips. Optionally automatic feeding of flaps or pocket bags. Optionally with incision of piping endings. Colour graphic display for 99 pocket programs 745 E 3503 Sewing equipment [0745 E03503]: sewing length 30 mm to 180 mm. With automatic notching of piping ends. Application: jacket/lining pockets Corner incision device [0745 598214]: Automatic knife block for slanted pockets autom. loading device [0745 517734]: Automatic loading device for e.g. flaps, pocket bags, from the left autom. loading device [0745 517744]: Automatic loading device for e.g. flaps, pocket bags, from the right Laser marking [0745 597934]: Additional 3 laser marking lamps EJECTOR ROLLERS [0745 597954]: Roll-off device, electronically adjustable support table [0745 598274]: Table extension, slanted Stacker 201/6-3 [1970 593144]: Flip stacker, swivell, mounted on stand Vacuum pump [1970 593314]: Vacuum blower with silencer 230 V, 50-60 Hz tape feeder & cutting device [B169 590074]: Tape feeder and automatic cutting device, step motor controlled
