GUNNAR Novex L (price on request)

Modular and flexible automatic single and low ply precision cutting solution.
MACHINE CHARACTERISTICS
Modular and upgradable machine and cutting tool concept
Very compact and ergonomical cutter design
Flexible tool adapter with easy to operate fast tool change system
Very simple and fast blade change with every cutting tool
Fully IP67 fiber and dust protected controller and electronics
Front and back touchless, sensor based operator safety system
Fully PC controlled operation with no extra additional operating panel
CE certified
High and constant cutting speed and acceleration
Maintenance and service friendly
Low operating and maintenance costs
Compatible to all major CAD data
MAIN AREAS OF APPLICATION
Composites  and lightweight material (Prepreg or dry fabric, woven or non-woven,  made of Carbon, Glass, Aramid, Basalt, Flax etc.)
Technical Textiles (Cloth, upholstery cloth, plastic foil, vinyl, sail cloth, insulation material, coated special textiles etc.)
Industrial  flat sheet material (Hybrid and multistructural material, sealing  material, several foams, cardboard, coated material etc.)
GUNNAR NOVEX S
with effective cutting window of 1‘800 mm x 1‘900 mmBASIC CONFIGURATION OF ALL CUTTER
MODELS
Digitally operated static cutting table with integrated controlled vacuum system
Cutter controller with cutter operating software idWINGMAN
Servo drive based 4-axis-control

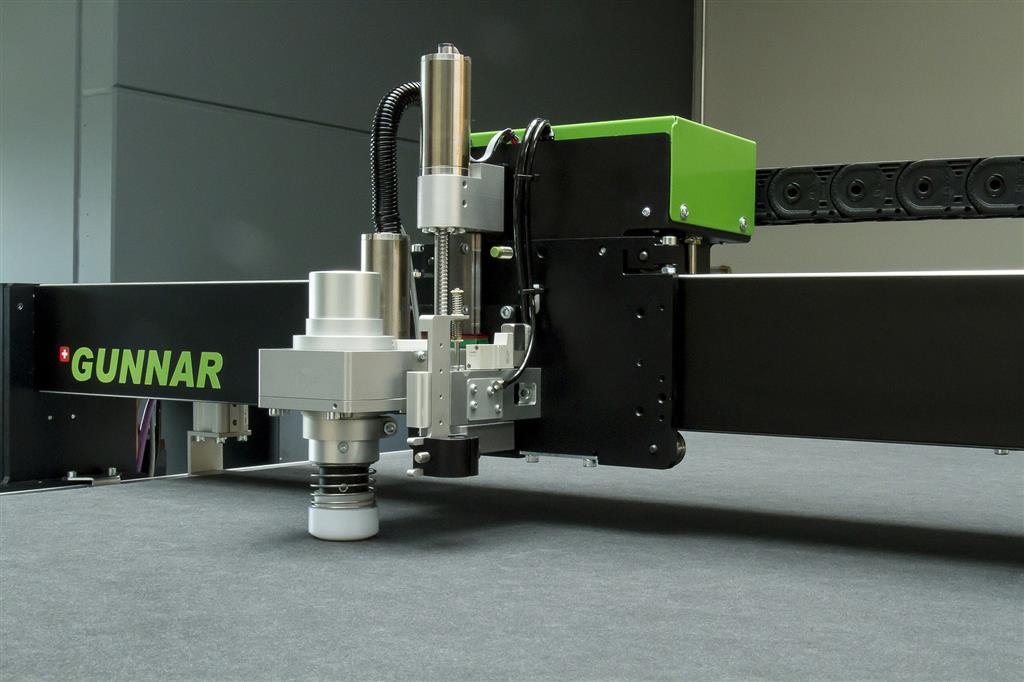

Single multifunctional tool adapter with 43mm fast changing system
Positioning laser
Cut data compatibility to DXF and optionally also HPGL, ISO, Gerber
EXTENDED CONFIGURATION OPTIONS FOR ALL CUTTER MODELS
Second multifunctional tool adapter with 43mm fast tool changing system
Conveyorized model for automatic material transport
Integrated offload table extension with conveyor

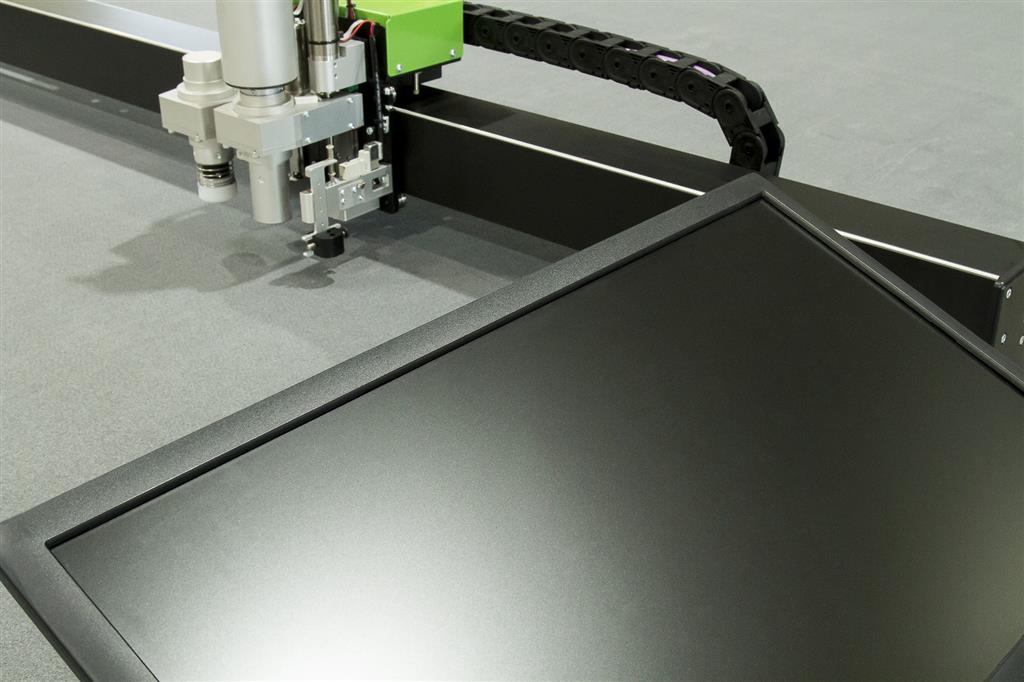

Integrated PC screen holder with standard VESA mount
Integrated IP67 19” touch based PC operation center
Universal clamping tool holder for marking tools UTH
CUTTING TOOLS FOR ALL CUTTER MODELS
Tangentially controlled drag knife tool TKT
Electrical driven rotary knife tool ERT
Electrical driven oscillation tool EOT
Multifunctional knife tool MKT
MAIN OPERATING FIGURES OF ALL CUTTER MODELS
Max cutting speed 1‘500 mm/s
Max positioning speed 2‘000 mm/s
Max acceleration 10 m/s2 (1G)
Positioning accuracy +/- 0,1mm
SELECTED PERIPHERAL HARDWARE OPTIONS AND ACCESSORIES
Material roll support unit (manual or electrical)
Label or inkjet printing/marking solutions
Laser projection system for cut part identification
Fully automatic material handling solutions for ultra long marker cutting
SELECTED PERIPHERAL SOFTWARE SOLUTIONS
idPRECAM simple digital cut data generation and editing (CAD module)
idCAMSUITE automatic nesting for material usage optimization (CAM module)
idTUNESUITE solutions for job order processing (ERP module)
GUNNAR DigiPen for simple and fast pattern digitalization
Contact us now for a detailed offer !
